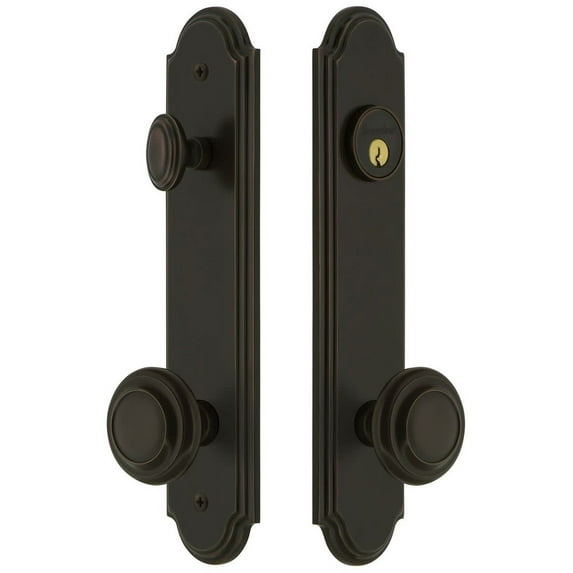

Grandeur Arccir_Tp_Eset_234 Arc Solid Brass Tall Plate Single Cylinder Keyed Entry Set -

Single Cylinder Keyed Entry Set and Passage Handle Function: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key in the deadbolt and can be locked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.

Features:

• Hand forged from solid brass
• Handing is reversible for left or right handed doors
• Easily installs on standard prepared doors
• Includes a 2-3/4" backset and square corner latch
• Covered by a Limited Lifetime Mechanical and 10 Year Finish Warranty
• Does not fulfill criteria of the American's with Disabilities Act (ADA)
• Hand assembled in the United States
• Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Product Technologies:

• Solid Brass Construction: Grandeur rosettes and backsets are forged from a solid piece of brass. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.

Specifications:

• Backset: 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/4" to 2"
• Handing: Reversible, Left or Right
• Handle Height: 2-3/8"
• Handle Width: 2-3/8"
• Handle Projection: 2-1/2"
• Center to Center: 5-1/2"
• Trim Height: 11"
• Trim Width: 2-1/2"
• Locking Mechanism: Thumbturn
• Cylinder: 5 Pin C
• Latch Faceplate: Square Corner
• Material: Brass
