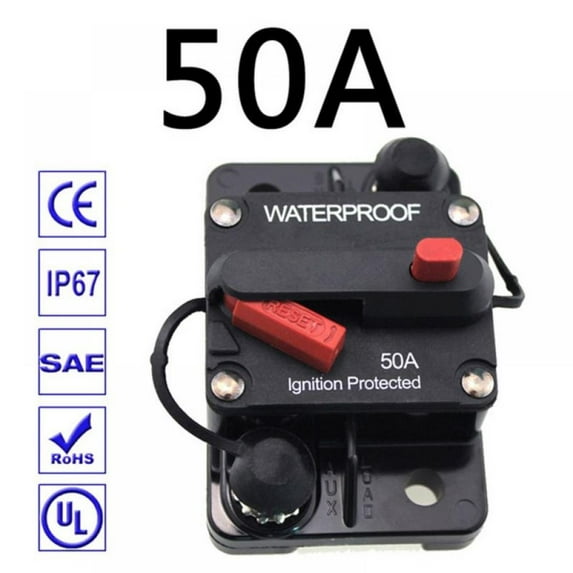

300 Amp Circuit Breaker 30A-300A with Manual Reset Waterproof Inline Fuse Inverter for Marine Trolling Motors Boat Vehicles ATV Manual Power 12-48 V Inline Fuse Inverter

Product Specifications:
Product size: 7.4 * 4.8 * 4.5CM
Product packaging: OPP
Product material: plastic + metal

Product Description:
High Ampere thermal trip circuit breaker with manual reset switch, suitable for other  electrical systems. Ideal for use in harsh environments such as racing cars to provide protection against current overload or short circuits. Protective rubber cap prevents unnecessary short circuits.
Commonly used in truck, bus, RV and marine applications; also used for battery cost and  audio systems. Switchable surface mount circuit breakers are commonly found in auxiliary and accessory circuits for truck, bus, camper- and marine systems. Sealed waterproof unit for engine compartment and bilge areas. The trip switch manual can quickly disconnect the circuit in an emergency.
Connecting bolt size-M6 x 2 nut with integral locking ring to prevent loosening due to vibration. Specifications: Circuit rating: 30A, 40A, 50A, 60A, 70A, 80A, 90A, 100, 120A, 140A, 150A, 200A, 250A, 300A (optional) Voltage rating: 12-48 V Interrupt rating: 3000A @ 30 V Operating temperature: -32 ° C to 82 ° C Storage temperature: -34 ° C-149 ° C Number of poles: 2 Weather rating: IP67 Certificate: SAE J1627 J1171 / UL1500 Color: Black case is made of thermoplastic, UL Rated 94V0 mounting hole (stud) size: 6mm / 1/4 inch-28 inch / inch size: 74x49x44mm / 2.91 "x 1.92" x 1.73 "

How to use:
1.Open circuit protection: When the current reaches the disconnection value, the long handle automatically pops open and cuts off the power. Generally, the short-circuit situation jumps off. After the fault is removed, press the long handle back to the original. Bit can form a pathway.
2. Manual power off: We need to disconnect the circuit during the modification, and directly press the oval red button on the fuse. At this time, the long handle automatically pops open to cut off the power. Connect it as above, then press the long handle back to the original position.

The Package included:
1 x Circuit Breaker

Note:
1. 1 inch = 2.54 cm
2. Please measure it yourself to choose the right size.
3. Due to the difference between the different displays, the picture may not reflect the actual color of the item. Thank you!
