Hero image 0 of DAE P204-200-S Kit1, UL, Outdoor, kWh Smart Submeter, 3P4W(3Hot wire,1N), 200A, 120-480V, with 3 CTs, 0 of 6

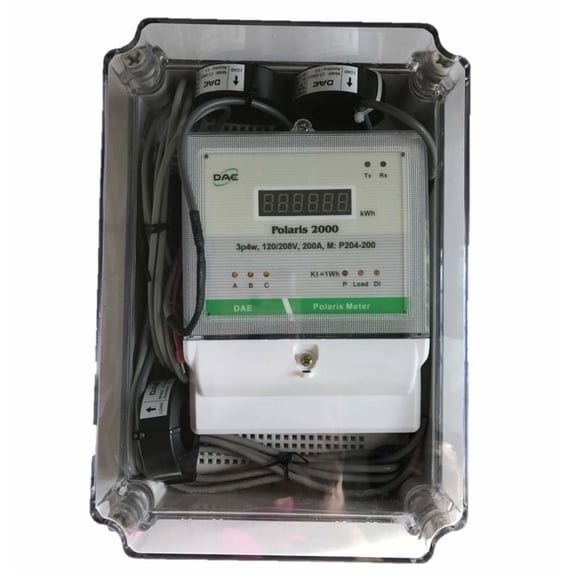

DAE P204-200-S Kit1, UL, Outdoor, kWh Smart Submeter, 3P4W(3Hot wire,1N), 200A, 120-480V, with 3 CTs
(No ratings yet)
Key item features
- UL/CUL Listed, California CTEP Approved. Certified by independent test lab to exceed ANSI C12.1 national accuracy standards. Revenue-grade 0.5% accuracy. Comes with a lower cover which has two 3/4" knockouts to connect the conduits. Confirmed by UL, fuse is not required when connecting breaker of electric panel to the meter. Good for both 3 phase 4 wire (3 hot wire, 1 Neutral) and 3 phase 3 wire (3 hot wire, no Neutral). Please connect the wiring as per 5th picture.
- P254-200-S KIT is ready for Cloud Metering (2nd picture) with DAE CC2030 Gateway. CC2030 will collect energy data from DAE electrical meters and send them to Cloud Server through Ethernet. With PC, cell phone or tablet, landlords or property managers can get access to real time data, monthly kWh and billing reports to their tenants. TOU (Time of Use) billing reports are also available. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.
- For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly (3rd picture). Outdoor/Indoor use, NEMA 4 Enclosure With UV resistance for both transparent lid and base.
- Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. Following CTs are available with the meter. Split Core CTs DAE CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A), CT-100S (100A) and Solid Core CT-600D9 (600A), CT-400D6 (400A), CT-200D3 (200A).
- For monitoring up to 8 electric panels remotely with cell phone, PC and generate billing reports, you will just need 1 SMB350-UL-8-B KIT + 1 CC2030 KIT.
Specs
- Volts120 V
- Digital/analogDigital
- Has nrtl listing certificationN
- FeaturesLCD Display
- BrandDAE
- Model namePolaris 2000
Current price is USD$296.99
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives by Wed, May 20
|
Sold and shipped by DAE Controls LLC
5 stars out of 5, based on 3 seller reviews(5.0)3 seller reviews
Free 30-day returns
About this item
Product details
DAE P204-200-S KIT1, UL listed, Outdoor Electric kWh Smart Submeter, Polaris 2000, 3 phase, 4 wire (3 hot wire, 1 neutral), 200A, 120-480V, with 3 Solid Cores CTs (inner diameter 1.02"), NEMA 4 Enclosure. UL/CUL Listed, California CTEP Approved. 1000 pulses per kWh. Very compact current sensors (CTs) and the accuracy will not be affected when the CTs are mounted up to 2000 feet away from the meter. kWh reading With LED display. Parallel up to three sets of CTs for cumulative reading. Non-volatile Memory, the stored data is maintained through power outages. Demand optional (15 minute interval standard, 30 minute or 60 minute intervals available). No conversion factor or multiplier required. 3 phase 4 wire (3 hot wire, 1 neutral) or 3 phase 3 wire (3 hot wire, no neutral) 208-240V, for other configurations contact us. Five year warranty from the seller and manufacturer. For the buyers outside of USA, in addition to the tax, the carriers may charge brokerage fee.
- UL/CUL Listed, California CTEP Approved. Certified by independent test lab to exceed ANSI C12.1 national accuracy standards. Revenue-grade 0.5% accuracy. Comes with a lower cover which has two 3/4" knockouts to connect the conduits. Confirmed by UL, fuse is not required when connecting breaker of electric panel to the meter. Good for both 3 phase 4 wire (3 hot wire, 1 Neutral) and 3 phase 3 wire (3 hot wire, no Neutral). Please connect the wiring as per 5th picture.
- P254-200-S KIT is ready for Cloud Metering (2nd picture) with DAE CC2030 Gateway. CC2030 will collect energy data from DAE electrical meters and send them to Cloud Server through Ethernet. With PC, cell phone or tablet, landlords or property managers can get access to real time data, monthly kWh and billing reports to their tenants. TOU (Time of Use) billing reports are also available. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.
- For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly (3rd picture). Outdoor/Indoor use, NEMA 4 Enclosure With UV resistance for both transparent lid and base.
- Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. Following CTs are available with the meter. Split Core CTs DAE CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A), CT-100S (100A) and Solid Core CT-600D9 (600A), CT-400D6 (400A), CT-200D3 (200A).
- For monitoring up to 8 electric panels remotely with cell phone, PC and generate billing reports, you will just need 1 SMB350-UL-8-B KIT + 1 CC2030 KIT.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Volts
120 V
Digital/analog
Digital
Has nrtl listing certification
N
Features
LCD Display
Warranty
Warranty information
This warranty covers only defects from normal use and does not include the defects due to improper installation, improper maintenance, misuse, neglect, water damage, acts of nature, tornadoes, any alterations or repairs by others not DAE.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
