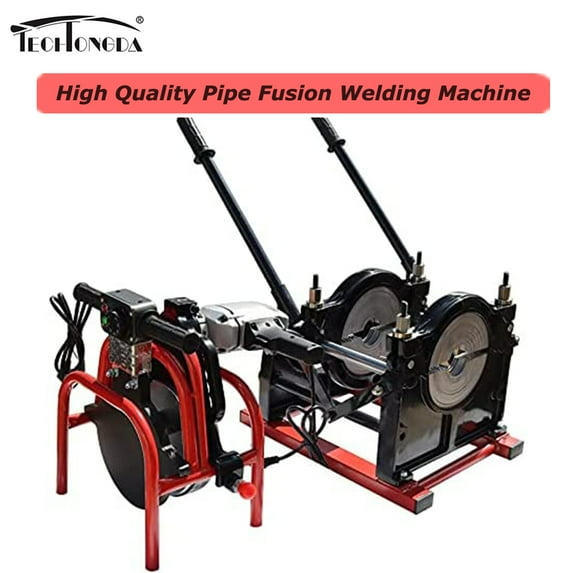

TECHTONGDA HDPE Butt Fusion Welding Machine Hand-Push 2 Clamps Pipe Fusion Welder (63-200mm)

Description:
Manually operated HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings.
High quality design and construction provides an excellent machine for welding both on the worksite and in the factory.
The use of high quality aluminum casting allows for lower weight without compromising strength and performance.
Simple operation, suitable for any complex working conditions.


Specifications:
Model：Hand-push 2.48-7.87”(63-200MM) four rings manual
Materials：Aluminum alloy casting, 45# steel
Welding level(Φ, mm)outer dia：63mm(2.48”)、75mm(2.95”)、90 mm (3.54”)、110 mm (4.33”)、125 mm (4.92”)、140 mm (5.51”)、160 mm (6.30”)、180 mm (7.09”)、200mm(7.87”)
Docking deviation：≤0.3mm
Power of Heater：2.5KW/110V
Milling cutter Power：1.1KW
Working temperature：300°c
Temperature deviation：±5°c
Environment temperature：~50-+40°c
Time required to reach soldering temperature：<20min
Materials can be welded：PE PP PB PVDF


Features:
1.Widen and thickened clamp, more stable during welding.
2.Lengthened and thickened frame, better bearing and more stable.
3.The hand push rod makes it easier to adjust the fixture distance.
4.The support of heating plate and milling cutter is provided as a bonus. After use, the heating plate can be placed to prevent burns.
5.With automatic pressure maintaining device, welding is more convenient without holding hands.
6.Milling cutter adopts high power motor, cutting more smoothly.Thickened anti sticking heating plate, durable.


Item Include:145013
TECHTONGDA HDPE Butt Fusion Welding Machine Hand-Push 2 Clamps Pipe Fusion Welder (63-200mm)
