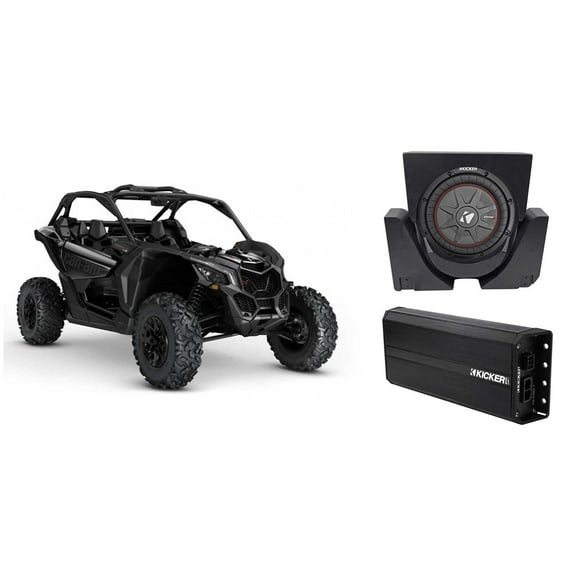

10" Under Seat Kicker Subwoofer for Can-Am MAVERICK X3/X3 Max+Amp+Enclosure

Package Includes:

(1) SSV Can-Am MAVERICK X3/X3 Max 10" Under Seat Shallow Subwoofer Sub BoxEnclosure
(1) Kicker 43CWRT101 COMPRT10 10" 800W 1-Ohm DVC Shallow Car Subwoofer Sub
(1) Kicker 42PXA500.1 500w Mono Amplifier Amp 4 Polaris/Motorcycle/ATV/UTV/RZR/Cart

Description of X3-US10-U:

(fits Maverick X3 and X3 Max)
SSV Works custom molded sub enclosure is designed for a 10" subwoofer and easilyinstalls under either the driver or passenger seat. No brakeline modificationrequired! The box simply mounts to the frame above the floor. They are 100%fiberglass for the best sound quality and bass response. They are finished in ablack texture coat to match textures and can be custom painted to match yourcolor scheme. - Includes stainless mounting hardware and step-by-stepinstallation instructions.

Video of 43CWRT101:



CompRT™ Subwoofers have reduced what were already the thinnest mounting depthsavailable from the world's bass leader, taking almost another inch off theshallow-mount driver's basket suitable for the trickiest installations. It'strue, deep bass that's made to fit where conventional-sized subwoofers don't.

Despite the shallower mount, CompRT Subwoofers are now available in 1- or 2-Ohmdual-voice coils, made to match perfectly with any Mono Amplifiers in a car ortruck, or with smaller-scale, low-impedance KICKER PX-Series Amplifiers in apowersports setting.
/:

Kicker 43CWRT101 10" 800 Watt Dual Voice Coil 1-Ohm Car Audio Subwoofer
Power Handling :
Peak : 800 watts
RMS : 400 watts
Size : 10"
Impedance : Dual 1-Ohm
True shallow-mount subwoofer great for compact cars or even motorcyclesaddlebags
Suitable for the trickiest installations
Large-diameter, progressive-roll spider
Inverted-bumped back plate and bumped top plate for full voice-coil clearanceand excursion
High-temp coil wire winding around a high-mass, solid pole piece
Double venting for max cool
Injection-molded polypropylene cone and tough Santroprene® surround thatinterlocks with front gasket
Dual pair of spring-loaded wire terminals custom-designed for shallow mount
Weather-proof for outdoor powersports applications
Frequency Response : 25 - 500Hz
Sensitivity : 84.8dB @ 1w/1m
Mounting Depth : 3-7/16"
Mounting Diameter : 9-1/8"
Min Sealed Box Vol : 0.4 cu. ft.
Max Sealed Box Vol : 1.25 cu. ft.
Min Vented Box Vol : 1.25 cu. ft.
Max Vented Box Vol : 1.75 cu. ft.

of 42PXA500.1:

Kicker 42PXA500.1 500 Watt RMS Motorcycle/ATV/Marine Mono Subwoofer Amplifier
RMS Power in Watts:
500 watts RMS x 1 at 2 ohms
250 watts RMS x 1 at 4 ohms
Fuse rating : 40A x 1
Length : 8-1/14"
Height : 1-9/16"
Width : 3-7/16"
Frequency Response : 25 - 120Hz
Signal-to-Noise Ratio : 95 dB
Input Sensitivity :
Low Level : 125mV–5V
High Level : 250m
