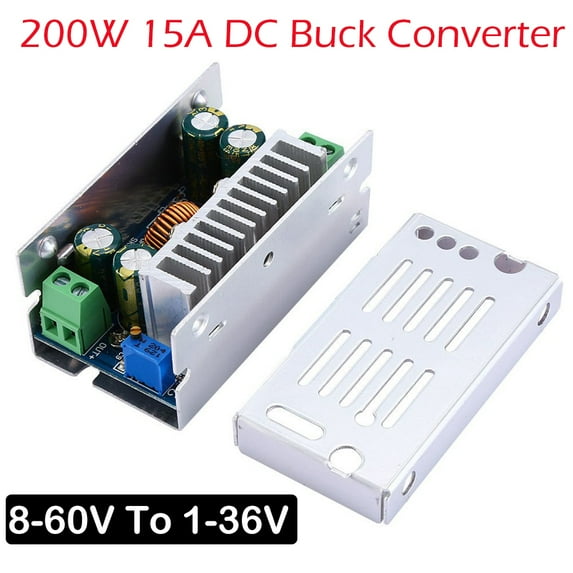

SENRISE DC-DC Adjustable Synchronous Buck Module Step Down Power Supply Module

Feature
1. 200W DC-DC high voltage power synchronous buck module
2. 8-60V wide voltage input, 1-36V stepless adjustable output
3. The maximum peak output current 15A
4. Perfect ultra-efficient circuit design up to 94% Low Ripple

Specifications
1. Brand: SENRISE
2. Name: 200W adjustable synchronous buck module
3. Type: Non-isolated step-down module (BUCK)
4. Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12"
5. Input voltage: 8-55V (limit 60V, please leave allowance)
6. Output voltage: 1-36V continuously adjustable (the default output 12V)
7. Output Current: Normal 10A , MAX15A
8. Output power: natural cooling ventilated long-term power 100W
9. To enhance heat dissipation up to 200W
10. Such as long working hours, please note left margin and make the heat rise
11. Operating temperature: -10 to +85 degrees
12. Operating frequency: 180KHz
13. Conversion efficiency: up to 94%
14. Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)
15. Reverse polarity protection: (reverse does not burn)
16. Wiring: High current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative

Package Content
1 x 200W Step-down Power Supply Module
