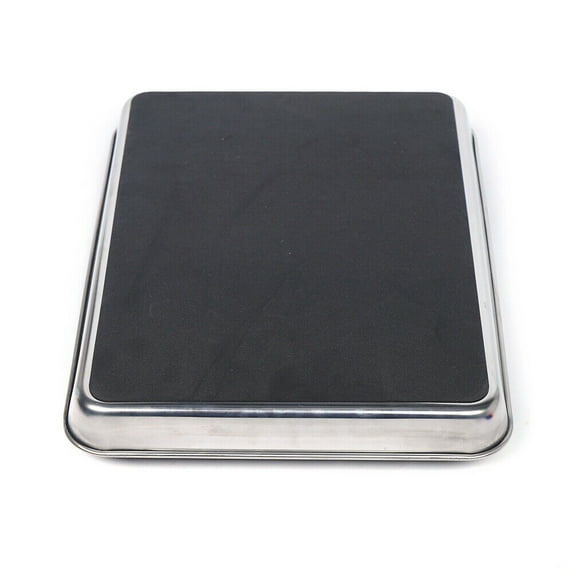

Bench Scale Parcel Weight Scale Postal Shipping Digital Weighing Platform USB LCD Display

Specifications:

200kg, 50G, USB cable, LCD display, non-slip sticker, pet, weighing, parcel scale

Product Size: 31.6X25X4.95cm(12.44*9.84*1.95inch)

Display Size: 153.4X83.4X25Mm

Power Supply: 3X "Aaa" & 5V Usb Power Supply

Maximum Weighing: 200Kg, Minimum Lifting Scale: 200G, Division Value: 50G

Net Weight: 1kg

Packing List:

Mail Parcel Scale+Usb Data Cable+Hook*2+3X "Aaa" Battery

Instructions:

When using for the first time, press the lock switch in Figure 5 to remove the display. Open the battery cover of the monitor (as shown in Figure 11), Put in AAA battery according to the battery identification, or connect the mobile phone charger with the plug cable (usb-dc) (as shown in Figure 4), or PC USB interface to provide power for the electronic scale.

Place the platform on the flat ground, press ON/OFF (Fig. 2) to start the machine, and return to zero after 88888 is displayed. At this time, the items to be weighed can be loaded and placed on theplatform (Fig. 1).

"Tare" key if you need to use the container to weigh the goods, add the container after turning on the machine to zero, and press TARE (Fig. 3) key to clear to zero, then you can load the goods in the container for measurement.

"Unit" key (Fig. 6) can select different units of measurement (kg, G, LB, oz)

"PCs" (Figure 7) (counting function): if you need to count a lot of the same items, you can use this function. This function provides 25-50-75-100 four different sampling numbers.

When the machine is turned to zero, you can count one of the four sampling values (such as 25 items) and put it on the scale to display the weight of 25 items (such as 1000g). At this time, press the PCS key for 3 seconds, P 25 will be displayed. (if you want to select the other three sampling values, press the UNIT key to display P 50, p75, P100,) at this time,press the PCS key again, the display will display PCS 25, and the same items can be loaded to start counting（The division value of this product is 50g, and the counting object should not be less than 50g, otherwise it may be inaccurate.)

Weighing Locking Function: In weighing state, press PCS + UNIT key for 3 seconds at the same time, the weighed weight will be locked, and press it again to release the lock.The kg unit will flash in the unlocked state, but not in the locked state.

The hanging hole in Figure 10 can hang the monitor on the wall (with product accessories) for easy reading.

Power-off time setting:

Press the "TARE" key for 3 seconds in the power on state to display Au 90 (representing 90seconds).

Press UNIT key to change the time, The on gest time is 540 seconds. 0 means no power off.

Press"TARE" key again to display the PSS and then the version number. The setting is completed.

Attentions:

Please place the product in a stable and vibration free place.

Do not place heav
