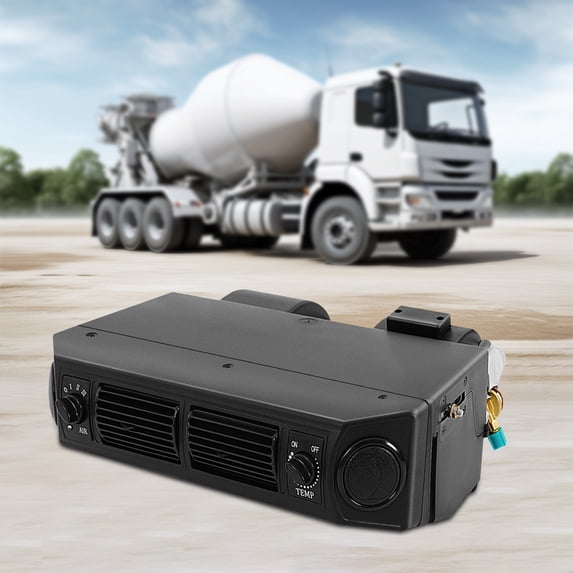

Cool Only 11000 BTU 12V Under Dash Air Conditioner Evaporator, Universal 3‑Speed AC Unit with 32 Pass 4‑Way Coil & Mounting Brackets for Classic Cars, Street Rods, RV Motorhomes

Cool Only

12V A/C Underdash Evaporator Compressor Air Conditioner

Features:
● All high impact injected plastic case.
● High quality expansion valve.
● High qualitiy thermostat and rotative 3 speed blower switch.
● interface on the right side
● 32 pass 4 way coil for maximum airflow and cooling capacity.
● Mounting brackets and drain hose and T included
● This is a Premium Quality Universal under dash A/C evaporator, intended for use in adding an air conditioning system to a vehicle which did not have A/C from the factory. It is most popularly used in classic cars, motorhomes, and heavy equipment.
Warranty: 5 Year

Specifications:
Material: Plastc housing, 32 pass 4 way coil ( Aluminum coil)
Type: 404 Single cooling type
Air Flow speed: 3
Cooling capacity BTU: about 3800BTU / 3200kcal/h
Color: Black
Voltage: 12V
Current: 8A
Power: 30W
Dimensions:
Length: 40cm / 15.7"
Width: 32cm / 13.8"
Height: 13cm / 5.5"

Package Contents:
1 x 12V Evaporator
1 set x Accessory（AS picture）

Notice:
1. Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
2. Only cooling function (No heating function).
NOTE: This product refers to an air outlet, which needs to be used with compressor and condenser.

Installation method:
1. Black screw position-connected to the negative line of the car battery
2. Red line-connect the positive line of the car battery
3. Green line-connect the compressor control line

Please contact seller for wiring diagram
