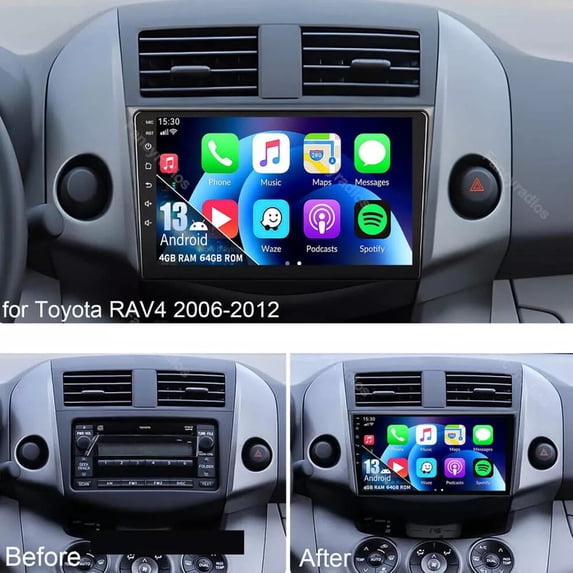

Apple Carplay For Toyota RAV4 2007 2008 2009 2010 2011 2012 9"QLED Android 15.0 Car in Dash Stereo Radio RDS GPS AHD Cam

Hybrid, SE and model with JBl sound system need a canbus decoder & special cable. We can offer it with extra cost.Hybrid, SE and model with JBl sound system need a canbus decoder & special cable. We can offer it with extra cost.Installation can be complex, so we suggested that install it by expert. For compatibility, check your vehicle’s year, dimensions, and center console shape.
Feature:

●Free AHD Reverse Camera Gift
●High-definition 9-inch 1280*720 QLED
●Wireless Carplay: The wireless Carplay in-vehicle system can closely integrate the user's iOS device and iOS experience with the dashboard system. Users who use Carplay can connect to the car system through a data cable to achieve voice-controlled navigation, make calls, send and receive messages, and listen to music.
● Android auto: The wireless Android auto car system can closely integrate the user's Android phone and player, and realize navigation, make calls, send and receive information, listen to music and other operations
● Mobile phone link upgrade dual system mirror link: IOS/Android mirror link
Specification:

    System: Android 15 OS
    Chipset: Quad Core  Cortex A7
    Screen size: 9''
    Screen resolution: 1280*720
    Memory: 2GB RAM + 16GB ROM (Expandable)
    Power output: 4*45W
    Power amplifier: ST7388
    Sound effect: ADI/HI-Res: 192khz/32bit
    Split screen: Support
    Steering wheel control function: Support
    Bluetooth version: 5.0
    Radio frequency band: FM/RDS
    Map: Built-in offline map (requires internet download)
    WIFI: Support
    USB: Dual USB interface
    AHD camera: Support
    OBD2: Support
    DAB+: Support
    Hard Disk Video Recorder: Support
    Tire pressure monitoring system: Support
    Phone link: Support
    External microphone: Support
    Audio format: APE/FLAC/WAV/MP3/WMA, etc.
    Video format: MKV/RMVB/AVI/MP4/MDV, etc.
    Picture format: PNG/JPEG/JPG/GIF/WBMP/BNP, etc.
    Languages:Chinese/English/French/Italian/Korean/Japanese/Arabic/Spanish/Portuguese/Russian/Turkish/Vietnamese/Hebrew/Polish/German, etc.

-----------
Tips:
1.Why can't turn on the car radio ?
1.1Please check the Voltage of car radio:12V
1.2When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
1.3Replace the same type of insurance to test the car radio.
Note: Please must use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.

2.Why the car radio will show "No Signal" when we reversing?
Please check if the camera's line is properly connected to the car radio.
Note:The video port of rear camera must insert the "CAMIN" port of car radio.

3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?
Please turn off the "Video Warning" function in the settings,then will be OK.

4.Why can't search FM?
4.1: No radio antenna inserted;
4.2: Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted;
4.3: The signal of your location is not good. Please go to a better place to test again
4.4: The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.

5. Why can't connect the Bluetooth of car radio?
5.1 Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
5.2 Please try to use another mobile phone to test this function.
All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minute.

6. Why turn off the car and power off the unit before installation?
Because the canbus box will be burnt and the backup camera will not work if not.
