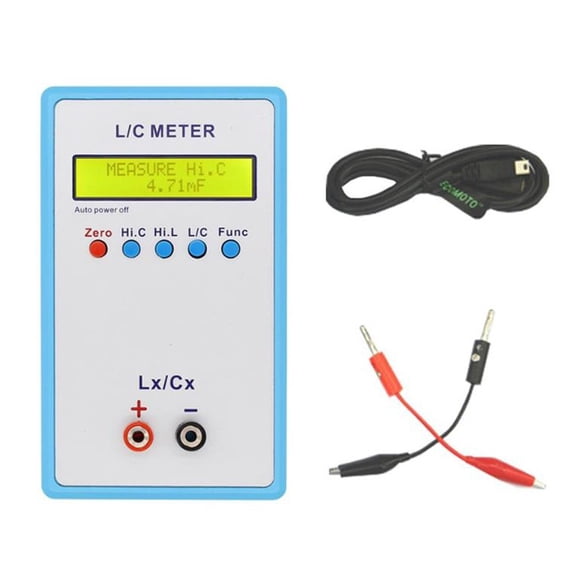

LC-200A Handheld Digital LCD Capacitance Inductance Meter LC Meter 1pF-100mF
Key item features
- 【Wide Range Measurement】The LC-200A Handheld Digital LCD Capacitance Inductance Meter is capable of measuring capacitance from 1pF to 100mF and inductance from 1uH to 100H. This wide range allows for applications in various electronic components.
- 【High & Resolution】With a capacitance measurement resolution of 01pF and an inductance measurement resolution of 0.001uH, this LC meter ensures accurate and precise results. It provides 1% accuracy for capacitance measurements and 1% accuracy for inductance measurements in the medium range, and 5% accuracy for high capacitance and high inductance measurements.
- 【 & Reliable】Constructed with materials, this LC meter is built to last. The blue plastic case not only adds a stylish appearance but also protects the internal for surface mount components, excellent durability and long-term reliability.
- 【Wide Application】Designed for a wide range of applications, this LC meter is particularly suitable for microwave manufacturing and the measurement of switching power supply , filter inductors, and other electronic components. Its and accuracy make it an for ideal tool for professionals and hobbyists alike.
Specs
- BrandChengsi
- Dimensions2.36 x 2.36 x 7.48 in
- Has written warrantyNo
- ModelCS62746
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Feature:
- and
- Made of material,
- LC200A handheld inductance and capacitance tester is an LC tester built by our company.
- It has a wide range and is easy to use.
- Combined with a blue plastic case, - mount components are used inside to for ensure excellent quality.
- It can measure the capacitance of 1pF-100mF and the inductance of 1uH-100H, the resolution of capacitance can be 0.01pF, and the resolution of inductance can be 0.001uH.
- Especially good at microwave manufacturing and measurement of switching power supply , filter inductors, .
Specification:
- C range: Capacitance (1pF-10uF)
- Capacitance accuracy: 1% (1pF～1), 5% (1～10)
- Capacitance measurement resolution (range C): 0.01pF
- for Hi range C: large capacitor, 1uF-100mF
- High capacitance accuracy: 5% (1uF-100mF)
- High volume measurement resolution (range for Hi.C): 0.01
- L range: inductance (1uH-100mH)
- Inductance accuracy: 1% (1°MH 100mH)
- for Hi L range: high inductance (0.001 mH-100 H)
- High inductance accuracy: 1% (100 mH ~ 1 H), 5% (1 H ~ 100 H)
- High inductance measurement resolution (range for Hi.L): 0.001mH
- Test frequency: Range L, C, 500 kHz; 500Hz ~ 50KHz L
- Capacitance inductance and large inductance measurement : LC resonance
- High capacity measurement : load discharge
- Display: 1602 LCD screen
- Effective display digits: 4 digits
- Power supply interface: USB & Φ5. 5 DC , 4 AA batteries (not included)
- Supply voltage: 5V
- Dimensions: 150x89 mm/5.90x3.50 inches
Package includes:
1 *LC200A L/C Meter
Notes:
1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture.
2. Please allow a slight deviation between the data and the manual measurement.
- 【Wide Range Measurement】The LC-200A Handheld Digital LCD Capacitance Inductance Meter is capable of measuring capacitance from 1pF to 100mF and inductance from 1uH to 100H. This wide range allows for applications in various electronic components.
- 【High & Resolution】With a capacitance measurement resolution of 01pF and an inductance measurement resolution of 0.001uH, this LC meter ensures accurate and precise results. It provides 1% accuracy for capacitance measurements and 1% accuracy for inductance measurements in the medium range, and 5% accuracy for high capacitance and high inductance measurements.
- 【 & Reliable】Constructed with materials, this LC meter is built to last. The blue plastic case not only adds a stylish appearance but also protects the internal for surface mount components, excellent durability and long-term reliability.
- 【Wide Application】Designed for a wide range of applications, this LC meter is particularly suitable for microwave manufacturing and the measurement of switching power supply , filter inductors, and other electronic components. Its and accuracy make it an for ideal tool for professionals and hobbyists alike.
