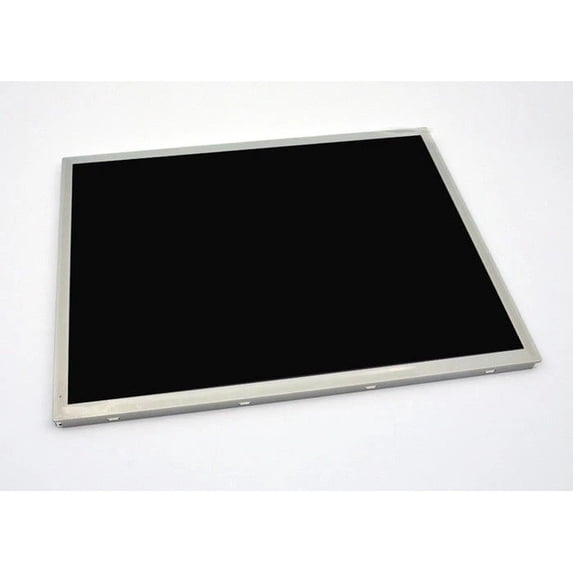

21.5" LM215WF1-TLC1 LCD Display Panel

Panel Size: 21.5 inch
Dot Resolution: 1920(RGB)×1080 (FHD)
Pixel Configuration: RGB Vertical Stripe
Pixel Density: 102 PPI
Aspect Ratio: 16:9 (H:V)
Form Factor: Flat Rectangle Display
Dot Pitch: 0.08275×0.24825 mm (H×V)
Pixel Pitch: 0.24825×0.24825 mm (H×V)
Surface: Antiglare (Haze 25%), Hard coating (3H)
Active Area: 476.64×268.11 mm (H×V)
Outline Dimension: 495.6×292.2 mm (H×V)
Outline Depth: 14.5 (Typ.) mm
Landscape or Portrait: Landscape type
Touch Panel: Without
Display Mode: TN, Normally White, Transmissive
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 1000 : 1 (Typ.) (Transmissive)
Display Color: 16.7M (6-bit + Hi-FRC)
Color Gamut: 72% NTSC (CIE1931)
Response Time: 1.1/3.9 (Typ.)(Tr/Td)
Viewing Angle: 85/85/75/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction: 6 o'clock
White color Chromaticity: Wx:0.313; Wy:0.329
