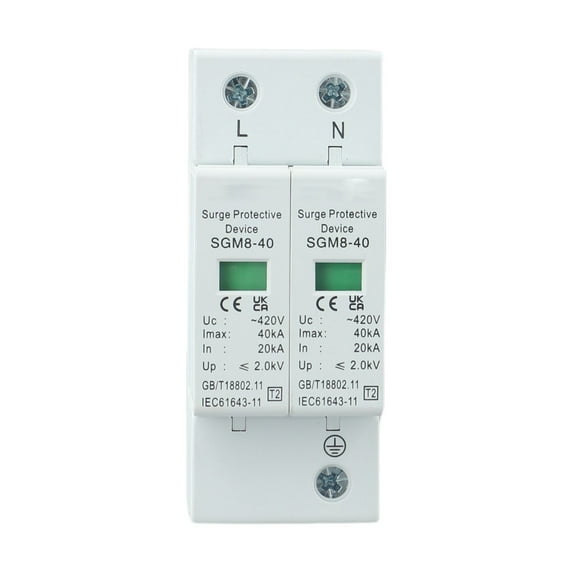

2P 20KA-40KA Surge Protective Device Lightnings for Protection Surge Arrester 420VAC

Feature:
*The product shell is made of PC flame retardant material, which is safer to use.
*The product is modular and its use and maintenance are very simple.
*The product is made of precise electronic components, with longer service life and more stable performance.
*Purple copper fittings, electrical conductivity is good.
*This product uses the guide rail installation. The installation is very easy.
*Install with standard 36MM guide rail and use with circuit breaker in distribution box

Specification:
Product model: SGM8-40
Part Name:surge protector
Material: Flame retardant PC material
color: gray
Number of poles: 2P
Voltage range: 420VAC
Maximum discharge current: 40KA
Rated Discharge Current: 20KA
Installation mode: guide rail mounting
Size：36mm*90mm
Residual voltage after discharge voltage: <2.0KV

Package Contents:
1*Surge protector


Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data
