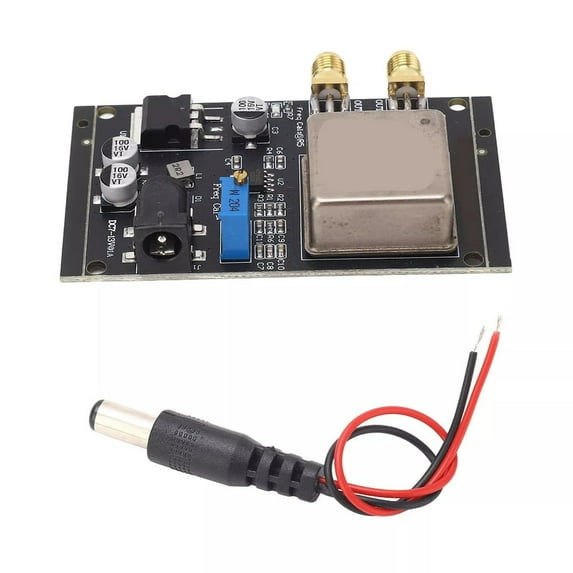

OCXO 10MHz Frequency Standard Reference Module for Crystal Oscillator Board

Features:
* OCXO module: 10MHz frequency reference source, for crystal oscillator constant temperature module, with stable output and good durability.
* for SMA interface: The reference source module has an for SMA female interface, with ultra-low phase noise, connection and stable performance.
* Applicable equipment: Suitable for audio systems, decoders, shortwave radios, frequency meters, sources and other instrument standards, convenient and practical.
* Easy to replace: Replace the old, damaged or damaged with this for crystal oscillator frequency reference board to for ensure the stability of the equipment.
* High performance: Using high-quality PCB components, this OCXO frequency module has high calibration accuracy, good frequency stability and low loss.

Specifications:
Part name: Frequency standard reference module
Material: PCB circuit board
Color: black
Size: standard
Current consumption: <750mA in warm-up stage, <300mA in working stage
Warm-up time: about 5 minutes
Calibration accuracy: ±0.01Hz
Frequency stability: 5e-12
Output level:
DBm: 10dBm±2dBm at 50Ω;
VRMS: 0.7071V at 50Ω;
VPeak: 1.0V at 50Ω;
for VP: 2.0V at 50Ω
Output impedance: 50Ω
Interface type: for SMA
Product use: Constant temperature 10MHz, ultra-low phase noise, reference module, frequency reference source, OCXO frequency reference source, used for audio systems, decoders, shortwave radios, frequency meters, sources and other instrument benchmarks.

Package contents:
1 x Frequency standard reference module
1 x Cable

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
