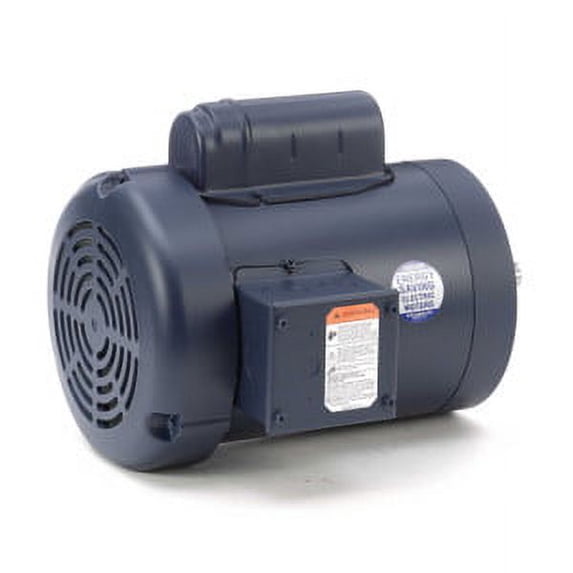

1 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/208-230V Leeson Electric Motor # 110058

• 1 hp 1725 RPM, 6.4/12.8 amps 115/208-230 Volts 60hz. single Phase Motor
• NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15 - overload protection = None
• No Base - Reversible - Round Body Motor - Ball Bearings - Class B Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor is round body with no base mounting. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
