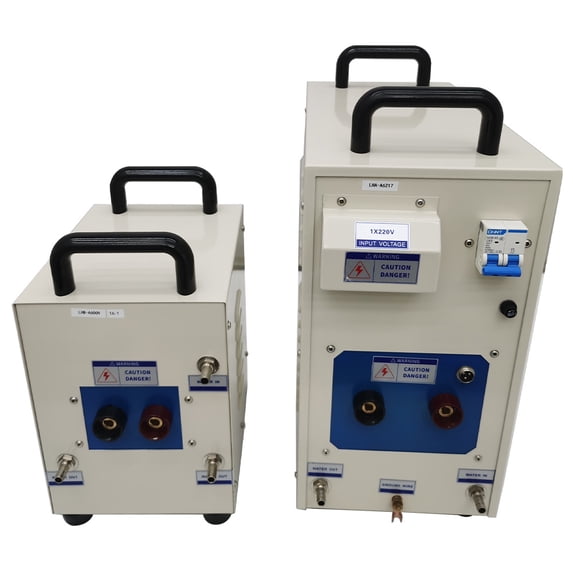

220V 15KW High Frequency Induction Heating Machine for Metal Welding Forging Heat Treatment

Product Overview:
The high frequency induction heating machine is a special heating device for metal materials by means of the induction heating technology. When the high-frequency alternating current passes through the induction coil, the alternating magnetic field can be generated, and the eddy current and the magnetic hysteresis loss are generated inside the workpiece, so that quick and accurate heating is achieved. The induction heating machine can be widely applied to fields of industrial heat treatment, smelting, welding, forging and so on.

Attention:
1. Before operating the machine, please read the instruction book thoroughly, and retain it for future reference. Before you purchase it, please clearly understand the voltage and the power of the machine (220V, 15KW).
2. This machine can't be used with a plug directly, it needs a power wire to connect the machine and power supply directly. (The cross-sectional area of power line must be larger than 6 square millimeters.)
3. This machine needs to be matched with a cooling water machine or water tank to be used, and the cooling water machine and water tank need to be prepared by customers.

Product Parameters:
Model: LH-15AB
Work Power: 220V 50Hz/60Hz
Operating voltage Range: 180-250V
Output Power: 15KW
Fluctuating Frequency: 30-100KHZ
Output Current: 200-600A
Heating Time: 1-99s (auto)
Flow rate of cooling water: 0.06-0.12Mpa 7.5L/Min
Water temperature protection point: 40℃
Net Weight: 28KG (62LB)
Package Size: 24.6"x24.8"x29.3"

Application：
As a special heating device, the high frequency induction heating machine can be widely applied to the fields of heating, smelting, quenching, annealing and braze welding of gears, shafts, bearings, auto parts, precision hardware parts and other metal parts.

Item included(022060):
Induction Heating Machine 220V 15KW
