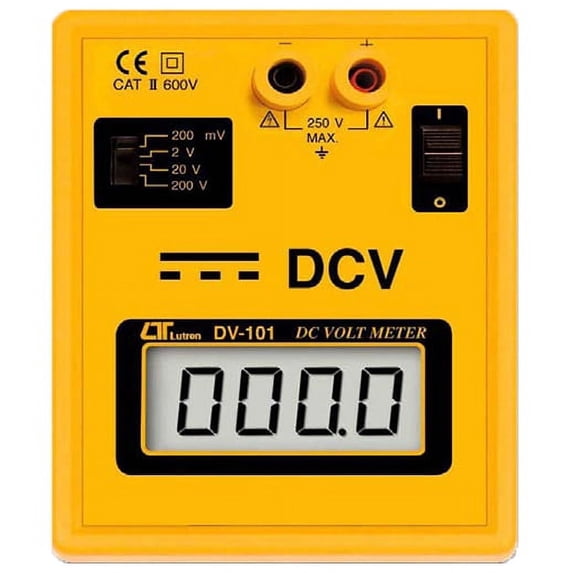

DC Voltmeter with LCD Display, 4 Ranges: 200 mV, 2 V, 20 V, 200 V

• Easy to operate DCV bench meter, compact size (5.8" x 2.6" x 4.0")
• 4 ranges:
  • 200 mV x 0.1 mV
  • 2 V x 0.001 V
  • 20 V x 0.01 V
  • 200 V x 0.1 V
• Large LCD display, 0.7-inch (18mm) digit height
• Approx. 0.4 sec. sampling time
• Automatic zero adjust
• Features high input impedance, overload protection for each range, and over-input indicator
• Standard banana terminals (red and black)
• On/off switch
• 9V battery operation
• Meets IEC1010 CATII 600V safety requirements
• Applications include education, industrial, QC and R and D, Lab.

General specifications:
Measurement: DC voltage
Display: LCD display, 18 mm ( 0.7" ) digit height
Range / Resolution:
200 mV x 0.1 mV
2 V x 0.001 V
20 V x 0.01 V
200 V x 0.1 V
Accuracy:
± ( 0.5%+1d ), reading @ 200 mV range
± ( 0.8%+1d ), reading @ 2V/20 V/200 V range
Input Impedance: 10M ohm
Polarity: Automatic Switching, '_' symbol indicates negative polarity
Zero Adjustment: Automatic
Over-input: display shows '1' or '-1'
Safety: Meets IEC1010 CATII 600V
Sampling Time: Approx. 0.4 second
Operating Temperature: 32 to 120℉ (0 to 50℃)
Operating Humidity: Less than 80% RH
Power Supply: 9V battery
Power Consumption: Approx. 1.9 mA
Dimensions: 5.8 x 2.6 x 4.0 inch
Weight: 0.68 LB (including battery)
Input terminal: Standard banana terminals (Red & Black)
Accessories: Instruction Manual
