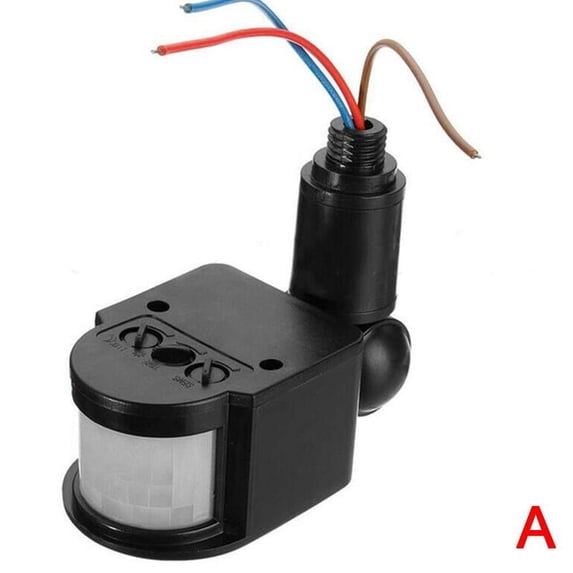

PIR Motion Sensor Switch Security Infrared Easy Light X2H0 I8T4 install F5A4

Product Description

Material: ABS

Working rotation: 180 °

Input Voltage: AC85V ~ 265V (50Hz)

Standard: LVD, EMC, CE, RoHS

IP rating: indoor application IP44

LUX Frame: 2-2000

Induction lighting time: 5s ~ 6min （adjustable）

Detection range: approx. 5-8m,

installation height：1.5-2.5m

Note：Please keep the button side lower when mounting.



Connection:

Blue color: Nullin (neutral)

Brown Color: Live wire

Red: Ground cable

Blue and brown input power

Blue and red connect load (lamps)


Features

Easy to install.

Automatic, convenient, safe and convenient.

Can be identified day and night automatically.

Large detection area from the top and bottom, left and right service field.

High sensitivity detector, circuit and SMT integration.


Package included:1 x PIR motion sensor switch
