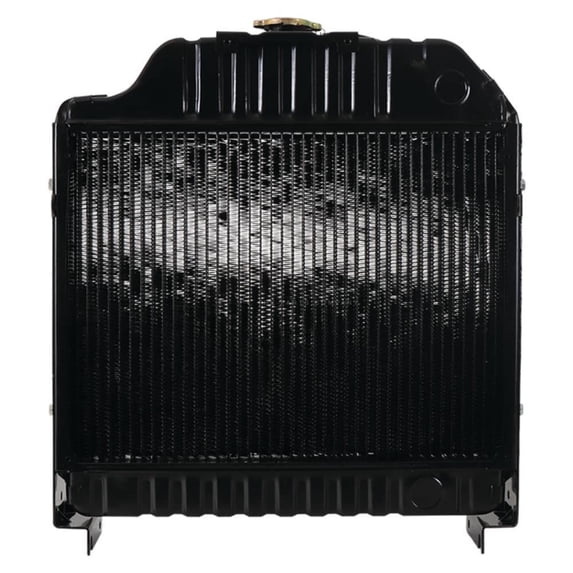

OEM Grade Radiator Compatible with 2000-2006 John Deere 5105 and 5205 Utility Tractor 40-45 HP 2.9L 3-Cylinder PowerTech Diesel 24 lb Copper Core Brass Tanks 3-Row 12 FPI RE71796

Applications:
John Deere 5105 Utility Tractor (40 PTO HP / 34 Drawbar HP) - 2.9L 3-Cylinder Diesel Engine (John Deere PowerTech Series) - 2000-2006 Production - 9x3 SyncShuttle Transmission
John Deere 5205 Utility Tractor (45 PTO HP / 38 Drawbar HP) - 2.9L 3-Cylinder Diesel Engine (John Deere PowerTech Series) - 2000-2006 Production - 9x3 SyncShuttle Transmission
Open Station Configuration Only with Roll-Over Protective Structure (ROPS) - Two-Wheel Drive (2WD) and Four-Wheel Drive (4WD) Models - All Serial Numbers Apply
NOTE: This Radiator is for Non-Cab Open Station Models Only - Cab Models Require a Different Radiator Part Number

OEM Part Numbers:
RE71796 (John Deere Primary Current Part Number) - RE73306 (John Deere Alternate Part Number) - 219866 (Aftermarket Industry Cross Reference Number)

Part Specifications:
Shipping Weight: 24 lbs (10.9 kg) - Construction Material: Copper Core with Brass Tanks and Steel Frame
Core Configuration: 3-Row Tube Design, 12 Fins Per Inch (FPI) - Core Height: 18-1/2 Inches - Core Width: 15-3/4 Inches - Core Thickness: 2-3/8 Inches
Overall Dimensions: 23-1/4 Inches Height x 17 Inches Width x 2-7/8 Inches Depth
Upper Hose Connection: 1-1/4 Inch Outside Diameter - Lower Hose Connection: 1-1/2 Inch Outside Diameter
Radiator Cap: Included (7 PSI Pressure Rating) - Petcock Drain Valve: Included - Mounting Bolt Spacing: 17-1/4 Inch Center-to-Center

Supersession Chain:
RE73306 (Original Release) → RE71796 (Current Replacement)

John Deere 5105 5205 Utility Tractor Radiator - Copper Core Brass Tanks - 3-Row 12 FPI Direct Fit OEM Replacement
