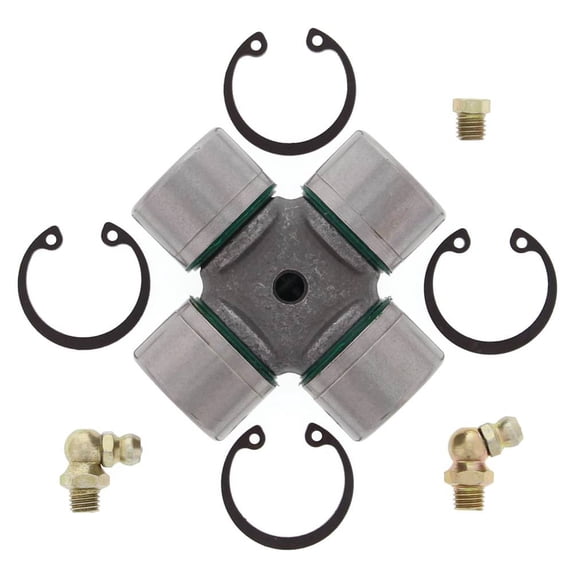

Hero image 0 of U-Joint Kit 25mm Outside Snap Rings Steel Rear Differential Compatible with 2006-2026 Can-Am Maverick 1000R Turbo XDS XRS Maverick MAX 1000R Turbo XDS UTV Replaces 703500846 All Balls, 0 of 1
U-Joint Kit 25mm Outside Snap Rings Steel Rear Differential Compatible with 2006-2026 Can-Am Maverick 1000R Turbo XDS XRS Maverick MAX 1000R Turbo XDS UTV Replaces 703500846 All Balls
(No ratings yet)
Key item features
- Rareelectrical Compatible With Can-Am
- Can-Am Commander 800R Series: • Commander 800R — 799Cc V-Twin (2010-2020) • Commander 800R Dps — Dynamic Power Steering (2016-2020) • Commander 800R Xt — Xtreme Trim (2011-2020) Can-Am Commander 1000 Series: • Commander 1000 — 976Cc V-Twin (2010-2026) • Commander 1000 Dps — Dynamic Power Steering (2014-2026) • Commander 1000 Xt — Xtreme Trim (2011-2026) • Commander 1000 Ltd — Limited Edition (2014-2020) • Commander 1000 Xtp — Xtreme Trail Performance (2014-2020) Can-Am Commander Max Series: • Commander Max 1000 — 4-Seat (2014-2026) • Commander Max 1000 Xt / Ltd / Xtp (2014-2026) • Commander Max 800R Dps (2016-2020) Can-Am Maverick 1000R Series: • Maverick 1000R — 976Cc V-Twin — Sport Utv (2014-2026) • Maverick 1000R Xrs / Xxc / Xmr — Performance Trims (2014-2026) • Maverick 1000R Xds / Xc — Desert / Cross-Country (2015-2026) • Maverick 1000R Turbo — Turbocharged (2015-2026) • Maverick 1000R Turbo Xds / Turbo Xrs (2015-2026) Can-Am Maverick Max 1000R Series: • Maverick Max 1000R / Max 1000R Xrs (2014-2026) • Maverick Max 1000 Xds / Max 1000 Xc (2015-2026) • Maverick Max 1000R Turbo / Turbo Xds / Turbo Xrs (2015-2026) Can-Am Outlander 450 / 570 Series: • Outlander 450 Dps — 427Cc Single (2015-2023) • Outlander 570 Dps / 570 Xmr — 570Cc Single (2016-2023) • Outlander Max 450 Dps / Max 570 / Max 570 Dps (2015-2023) Can-Am Outlander L Series: • Outlander L 450 / L Max 450 — 427Cc (2015-2023) • Outlander L 500 / L Max 500 — 500Cc (2015-2023) • Outlander L 570 / L 570 Le — 570Cc (2016-2023) Can-Am Outlander 6X6 / Xmr Series: • Outlander 1000 6X6 Xt — 976Cc (2014-2023) • Outlander 650 6X6 — 650Cc (2015-2023) • Outlander 800 Xmr — 800Cc (2011-2016) Can-Am Renegade 570: • Renegade 570 — 570Cc Single (2016-2023) Driveshaft Position: • Rear Driveshaft — Differential Side Only • Not For Transmission Side — Uses Different U-Joint Compatibility Notes: • 25Mm Cap Diameter With Outside Snap Rings • 64.2Mm Overall Width • 703500846 Supersedes 715900270 And 715900278
- Can-Am Brp : • 703500846 (Rear U-Joint Assembly — Supersedes 715900270 / 715900278 / 715900327) • 715900270 (Rear Driveshaft U-Joint — Original Specification) • 715900278 (Rear Driveshaft U-Joint — Original Specification) • 715900327 (Rear Driveshaft U-Joint — Superseded By 703500846) : • All Balls 19-1017 (U-Joint Kit 25Mm Outside Snap Rings — Rear Differential Side) • Caltric Rear Driveshaft U-Joint Compatible With 703500846 • Wqsing Rear Prop Shaft U-Joint Not Compatible With: • Rear Driveshaft Transmission Side — Different Position (Use All Balls 19-1006) • Front Driveshaft Applications — Different U-Joint Specification • Inside Snap Ring Applications — This Is Outside Snap Ring Design • Can-Am Maverick X3 — Uses Different U-Joint Specification • Can-Am Defender — Uses Different Driveshaft Configuration Product Specifications: • Type: U-Joint Kit (Universal Joint) • U-Joint Diameter: 25Mm (Cap Diameter) • U-Joint Width: 64.2Mm (Overall Width) • Snap Ring Type: Outside Snap Rings • Material: Cold-Forged Scm-415 Steel • Hardness: Hrc58-61 (Case Hardened) • Bearings: Needle Roller Bearings In Bearing Cups • Seal: Quad Lip Seal On Bearing Cups • Grease: Pre-Filled With Hi-Temp Lithium Complex 3 • Feature: Grease Zerk With Cap Plug Included • Position: Rear Driveshaft — Differential Side • Application: Can-Am Commander / Maverick / Outlander / Renegade
- Source: Aftermarket
- One Year Manufacturer's Warranty.
Specs
- Manufacturer part number19-1017A2
- Vehicle fitment typeSpecific
- BrandRareelectrical
- Automotive specialty part typeAUTOMOTIVE, Drivetrain & Axles, U-Joints
- Weight0.8 lb
- Items includedU-Joint Kit
Current price is USD$61.13
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives between May 29 - Jun 1
|
Sold and shipped by Rareelectrical
4.429872495446266 stars out of 5, based on 549 seller reviews(4.4)549 seller reviews
Free 30-day returns
About this item
Product details
Applications:
• Can-Am Commander 800R / 800R DPS / 800R XT (2010-2020)
• Can-Am Commander 1000 / 1000 DPS / 1000 XT / 1000 LTD / 1000 XTP (2010-2026)
• Can-Am Commander MAX 1000 / MAX 1000 XT / MAX 1000 LTD / MAX 800R DPS (2014-2026)
• Can-Am Maverick 1000R / XRS / XXC / XMR / XDS / XC (2014-2026)
• Can-Am Maverick 1000R Turbo / Turbo XDS / Turbo XRS (2015-2026)
• Can-Am Maverick MAX 1000R / MAX 1000 XDS / MAX 1000 XC (2014-2026)
• Can-Am Outlander 450 DPS / 570 DPS / 570 XMR (2015-2023)
• Can-Am Outlander L 450 / L 500 / L 570 / L 570 LE (2015-2023)
• Can-Am Outlander L MAX 450 / L MAX 500 / MAX 570 DPS (2015-2023)
• Can-Am Outlander 1000 6x6 XT / 650 6x6 / 800 XMR (2006-2023)
• Can-Am Renegade 570 (2016-2023)
Numbers:
• Can-Am: 703500846 (Rear U-Joint — Supersedes 715900270 / 715900278)
• Can-Am: 715900270 (Rear Driveshaft U-Joint — Original)
• Can-Am: 715900278 (Rear Driveshaft U-Joint — Original)
Specifications:
• Type: U-Joint Kit (Universal Joint)
• U-Joint Diameter: 25mm (Cap Diameter)
• U-Joint Width: 64.2mm (Overall Width)
• Snap Ring Type: Outside Snap Rings
• Material: Cold-Forged SCM-415 Steel
• Hardness: HRC58-61 (Case Hardened)
• Bearings: Needle Roller Bearings
• Seal: Quad Lip Seal on Bearing Cups
• Grease: Pre-Filled with Hi-Temp Lithium Complex 3
• Feature: Grease Zerk with Cap Plug Included
• Position: Rear Driveshaft — Differential Side
Rear Differential U-Joint — Can-Am Commander / Maverick / Outlander
Replacement rear driveshaft u-joint kit (differential side) for Can-Am Commander, Maverick, Outlander, and Renegade ATVs and UTVs. Cold-forged SCM-415 steel with HRC58-61 case hardening. Needle roller bearings with quad lip seals. Pre-greased with hi-temp lithium complex grease.
• Can-Am Commander 800R / 800R DPS / 800R XT (2010-2020)
• Can-Am Commander 1000 / 1000 DPS / 1000 XT / 1000 LTD / 1000 XTP (2010-2026)
• Can-Am Commander MAX 1000 / MAX 1000 XT / MAX 1000 LTD / MAX 800R DPS (2014-2026)
• Can-Am Maverick 1000R / XRS / XXC / XMR / XDS / XC (2014-2026)
• Can-Am Maverick 1000R Turbo / Turbo XDS / Turbo XRS (2015-2026)
• Can-Am Maverick MAX 1000R / MAX 1000 XDS / MAX 1000 XC (2014-2026)
• Can-Am Outlander 450 DPS / 570 DPS / 570 XMR (2015-2023)
• Can-Am Outlander L 450 / L 500 / L 570 / L 570 LE (2015-2023)
• Can-Am Outlander L MAX 450 / L MAX 500 / MAX 570 DPS (2015-2023)
• Can-Am Outlander 1000 6x6 XT / 650 6x6 / 800 XMR (2006-2023)
• Can-Am Renegade 570 (2016-2023)
Numbers:
• Can-Am: 703500846 (Rear U-Joint — Supersedes 715900270 / 715900278)
• Can-Am: 715900270 (Rear Driveshaft U-Joint — Original)
• Can-Am: 715900278 (Rear Driveshaft U-Joint — Original)
Specifications:
• Type: U-Joint Kit (Universal Joint)
• U-Joint Diameter: 25mm (Cap Diameter)
• U-Joint Width: 64.2mm (Overall Width)
• Snap Ring Type: Outside Snap Rings
• Material: Cold-Forged SCM-415 Steel
• Hardness: HRC58-61 (Case Hardened)
• Bearings: Needle Roller Bearings
• Seal: Quad Lip Seal on Bearing Cups
• Grease: Pre-Filled with Hi-Temp Lithium Complex 3
• Feature: Grease Zerk with Cap Plug Included
• Position: Rear Driveshaft — Differential Side
Rear Differential U-Joint — Can-Am Commander / Maverick / Outlander
Replacement rear driveshaft u-joint kit (differential side) for Can-Am Commander, Maverick, Outlander, and Renegade ATVs and UTVs. Cold-forged SCM-415 steel with HRC58-61 case hardening. Needle roller bearings with quad lip seals. Pre-greased with hi-temp lithium complex grease.
- Rareelectrical Compatible With Can-Am
- Can-Am Commander 800R Series: • Commander 800R — 799Cc V-Twin (2010-2020) • Commander 800R Dps — Dynamic Power Steering (2016-2020) • Commander 800R Xt — Xtreme Trim (2011-2020) Can-Am Commander 1000 Series: • Commander 1000 — 976Cc V-Twin (2010-2026) • Commander 1000 Dps — Dynamic Power Steering (2014-2026) • Commander 1000 Xt — Xtreme Trim (2011-2026) • Commander 1000 Ltd — Limited Edition (2014-2020) • Commander 1000 Xtp — Xtreme Trail Performance (2014-2020) Can-Am Commander Max Series: • Commander Max 1000 — 4-Seat (2014-2026) • Commander Max 1000 Xt / Ltd / Xtp (2014-2026) • Commander Max 800R Dps (2016-2020) Can-Am Maverick 1000R Series: • Maverick 1000R — 976Cc V-Twin — Sport Utv (2014-2026) • Maverick 1000R Xrs / Xxc / Xmr — Performance Trims (2014-2026) • Maverick 1000R Xds / Xc — Desert / Cross-Country (2015-2026) • Maverick 1000R Turbo — Turbocharged (2015-2026) • Maverick 1000R Turbo Xds / Turbo Xrs (2015-2026) Can-Am Maverick Max 1000R Series: • Maverick Max 1000R / Max 1000R Xrs (2014-2026) • Maverick Max 1000 Xds / Max 1000 Xc (2015-2026) • Maverick Max 1000R Turbo / Turbo Xds / Turbo Xrs (2015-2026) Can-Am Outlander 450 / 570 Series: • Outlander 450 Dps — 427Cc Single (2015-2023) • Outlander 570 Dps / 570 Xmr — 570Cc Single (2016-2023) • Outlander Max 450 Dps / Max 570 / Max 570 Dps (2015-2023) Can-Am Outlander L Series: • Outlander L 450 / L Max 450 — 427Cc (2015-2023) • Outlander L 500 / L Max 500 — 500Cc (2015-2023) • Outlander L 570 / L 570 Le — 570Cc (2016-2023) Can-Am Outlander 6X6 / Xmr Series: • Outlander 1000 6X6 Xt — 976Cc (2014-2023) • Outlander 650 6X6 — 650Cc (2015-2023) • Outlander 800 Xmr — 800Cc (2011-2016) Can-Am Renegade 570: • Renegade 570 — 570Cc Single (2016-2023) Driveshaft Position: • Rear Driveshaft — Differential Side Only • Not For Transmission Side — Uses Different U-Joint Compatibility Notes: • 25Mm Cap Diameter With Outside Snap Rings • 64.2Mm Overall Width • 703500846 Supersedes 715900270 And 715900278
- Can-Am Brp : • 703500846 (Rear U-Joint Assembly — Supersedes 715900270 / 715900278 / 715900327) • 715900270 (Rear Driveshaft U-Joint — Original Specification) • 715900278 (Rear Driveshaft U-Joint — Original Specification) • 715900327 (Rear Driveshaft U-Joint — Superseded By 703500846) : • All Balls 19-1017 (U-Joint Kit 25Mm Outside Snap Rings — Rear Differential Side) • Caltric Rear Driveshaft U-Joint Compatible With 703500846 • Wqsing Rear Prop Shaft U-Joint Not Compatible With: • Rear Driveshaft Transmission Side — Different Position (Use All Balls 19-1006) • Front Driveshaft Applications — Different U-Joint Specification • Inside Snap Ring Applications — This Is Outside Snap Ring Design • Can-Am Maverick X3 — Uses Different U-Joint Specification • Can-Am Defender — Uses Different Driveshaft Configuration Product Specifications: • Type: U-Joint Kit (Universal Joint) • U-Joint Diameter: 25Mm (Cap Diameter) • U-Joint Width: 64.2Mm (Overall Width) • Snap Ring Type: Outside Snap Rings • Material: Cold-Forged Scm-415 Steel • Hardness: Hrc58-61 (Case Hardened) • Bearings: Needle Roller Bearings In Bearing Cups • Seal: Quad Lip Seal On Bearing Cups • Grease: Pre-Filled With Hi-Temp Lithium Complex 3 • Feature: Grease Zerk With Cap Plug Included • Position: Rear Driveshaft — Differential Side • Application: Can-Am Commander / Maverick / Outlander / Renegade
- Source: Aftermarket
- One Year Manufacturer's Warranty.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Manufacturer part number
19-1017A2
Vehicle fitment type
Specific
Brand
Rareelectrical
Automotive specialty part type
AUTOMOTIVE, Drivetrain & Axles, U-Joints
Warranty
Warranty information
RAREELECTRICAL products, when properly installed, are warranted against defects to the original purchaser for 1 year from date of purchase. Warranty does not cover failure due to accident, neglect or the result of normal wear & tear. Improper installation, careless handling or disassembly will void warranty. Failures due to rust, abuse, broken gears, housings or components shall not be considered for warranty, nor products used in applications which they were not intended. The sole responsibility of RAREELECTRICAL - if any - shall be the replacement of defective product. It is the responsibility of the customer to verify the correct information prior to purchasing any product from RAREELECTRICAL. All purchases made in error, bought by mistake, or returned to sender due to an incorrect address are subject to a 20% restocking fee & require a return authorization. In these cases, domestic return shipping costs will also be deducted from the refund using our discounted shipping rates.
