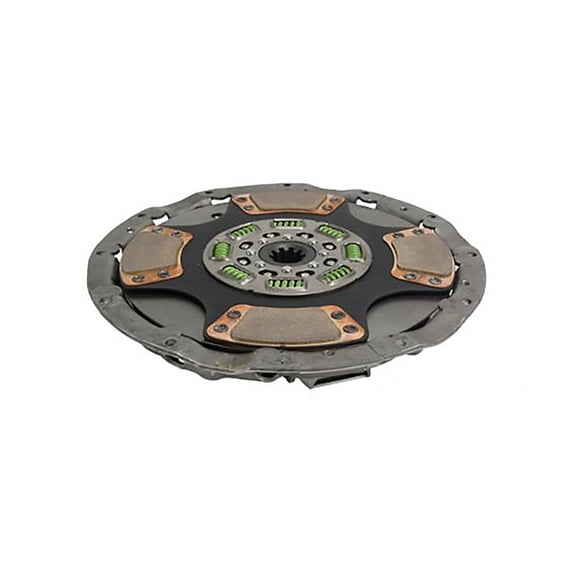

14" Heavy Duty Clutch Assembly - Manual Adjusting Clutch Assembly Replaces 12329283 107621-6 C1076211 C1076216 LP1938-138 107620-1

Get this Clutch Assembly, 14 In., Single Plate, External Adjustment - Replaces OEM 107620-1, Spicer 107621-1, 107621-6, SGR1076201, Mei 12329283, Navistar C107620-1, C1076211, C1076216, Lipe LP1938-138. This heavy-duty clutch assembly is essential for reliable power transfer and smooth engagement in commercial vehicles. Find more information about this robust clutch system below:

• Size: This clutch assembly is available in a 14" clutch diameter.
• Torque Capacity: This clutch assembly is designed for demanding applications, it provides a maximum torque of 500 lb-ft and a clamp load of 2,400.
• Design Type: It is a single plate clutch, with only one friction disc for enhanced torque capacity and durability. The clutch disc has 4-paddle design, made from Ceramic material, known for excellent heat tolerance and friction. The disc is sprung type with 8 springs to absorb driveline vibrations for smoother engagement.
• Adjustment Type: This is an external-type clutch, indicating its release mechanism.
• Bore Diameter: The clutch has a 7-inch bore diameter and requires a minimum flywheel opening of 7 inches.
• Application: This heavy-duty clutch assembly is designed for commercial vehicles and machinery requiring a robust and reliable connection between the engine and transmission. It facilitates the engagement and disengagement of power, allowing for gear changes and smooth vehicle operation under heavy loads. Its high torque capacity and ceramic disc material make it suitable for demanding, high-wear environments.

Compatibility:

• Fits Spicer 107620-1, 107621-1, 107621-6, SGR1076201
• Fits Mei 12329283
• Fits Navistar C107620-1, C1076211, C1076216
• Fits Lipe LP1938-138

Safety Points to Consider:

• Always ensure the clutch assembly is properly aligned with the flywheel and transmission input shaft to avoid premature wear and engagement issues.
• Inspect the flywheel for cracks, hot spots, or excessive wear before installing a new clutch to ensure optimal performance and longevity.
• Use appropriate lifting equipment and follow manufacturer guidelines for safe installation due to the weight and complexity of heavy-duty clutch assemblies.
• Bleed the hydraulic clutch system (if applicable) thoroughly after installation to ensure proper pedal feel and full disengagement.
• Ensure all bolts are torqued to the manufacturer's specifications.

Installation Instructions:

• Safely remove the transmission from the vehicle to access the old clutch assembly.
• Remove the old pressure plate, clutch discs, and release bearing.
• Inspect and resurface or replace the flywheel as necessary.
• Install the new clutch discs (paying attention to "flywheel side" markings) and the intermediate plate onto the alignment tool.
• Mount the pressure plate assembly to the flywheel, aligning it with the clutch discs, and tighten bolts gradually in a star pattern to specifications.
• Install the new release bearing and fork (if applicable) and reassemble the transmission.
• Ensure proper adjustment of the clutch linkage or hydraulic system after reinstallation.

When to Replace the Clutch Assembly:

• When experiencing significant clutch slippage, especially under load, indicating worn friction material.
• If there's difficulty shifting gears, grinding noises, or the clutch does not fully disengage.
• When the clutch pedal feels spongy, unusually hard, or exhibits excessive free play.
• During routine maintenance or when other major transmission or engine work is being performed, given the labor involved.
• If visual inspection reveals cracks in the pressure plate, broken springs, or severely worn clutch discs.
