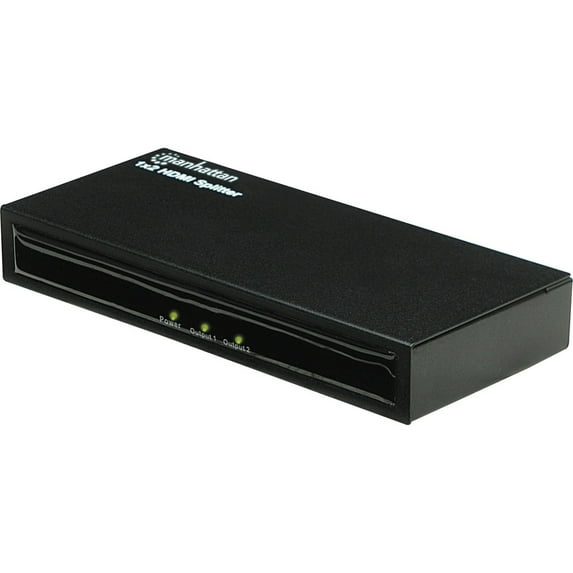

Manhattan Products 177337 Manhattan 2-Port HDMI Splitter - Duplicates a high-definition digital audio/video signal for two HDMI outputs

Easily distribute a single HDMI signal to multiple displays. The Manhattan HDMI Splitter helps send HDMI (High-Definition Multimedia Interface) signals from a single HD DVD or Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to additional HDMI displays. Flexible Solution for Many A/V Applications Ideal for trade shows, classrooms, video conferencing and presentations and retail applications, the Manhattan HDMI Splitter features a built-in booster for added signal strength. It's also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio to additional displays in widely distributed applications. Quality Construction and Easy Installation Full compliance with HDMI, HDCP 1.0, 1.1 and 1.2 and DVI 1.0 ensures that the Manhattan HDMI Splitter can

---

General Information
Manufacturer: Manhattan
Manufacturer Part Number: 177337
Brand Name: Manhattan
Product Model: 177337
Product Name: HDMI Splitter
Product Type: Audio/Video Switchbox

Technical Information
Connectivity Technology: Cable
Number of Input Devices Supported: 1
Device Supported: Computer, DVD Player, Set-top Box, Blu-ray Disc Player
Number of Displays Supported: 2

Video
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Scan Format: 1080p
Maximum Video Bandwidth: 225 MHz

Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
Number of HDMI Inputs: 1
Number of HDMI Outputs: 2

Media & Performance
Maximum Operating Distance: 49 ft

Power Description
Input Voltage: 5 V DC

Physical Characteristics
Color: Black
Height: 0.9"
Width: 6.1"
Depth: 2.8"
Weight (Approximate): 9.17 oz

Miscellaneous
Package Contents: HDMI SplitterPower AdapterUser Manual
Certifications & Standards: CEFCCUL
Environmentally Friendly: Yes
Environmental Certification: WEEE

Warranty
Limited Warranty: Lifetime
