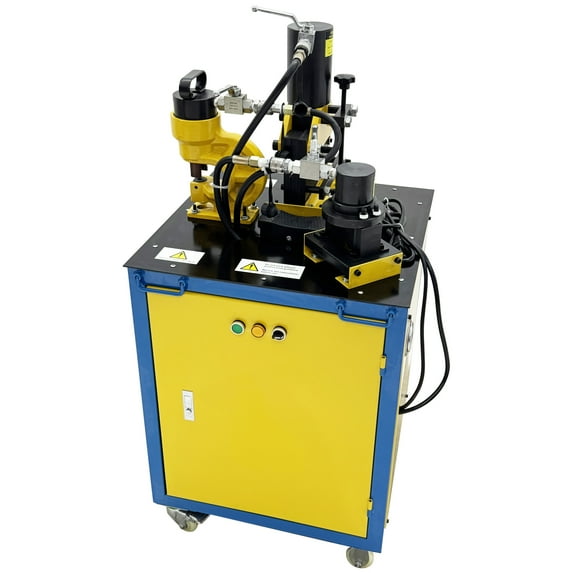

3-in-1 Hydraulic Angle Steel Cutting Machine Punching Chamfering Cutting Industrial Angle Iron Processor
(No ratings yet)
Key item features
- 3-in-1 Multifunctional Design: Integrates punching, cutting, and chamfering functions into one compact unit. Eliminates the need for multiple machines, saving workspace and reducing operational costs.
- High-Precision Hydraulic Performance: The punching module delivers clean, burr-free holes with regular shape and high positioning accuracy. The cutting module enables one-time angle iron cutting, reducing labor intensity and improving efficiency.
- User-Friendly Operation: Features an integrated control panel with indicator lamps and a foot pedal for hands-free operation. A pressure gauge provides real-time system pressure monitoring, ensuring safe and stable performance.
- Durable & Stable Build: High-performance driving motor provides reliable power for consistent operation. High-quality control valves ensure precise function switching with low fault rates.
- Portable & Versatile: Equipped with moving wheels for easy transport between work sites. Ideal for steel structure processing, tower manufacturing, and building decoration applications.
Specs
- Height50.4 in
- BrandPreasion
- Weight319.6 lb
- ColorYellow,Black
- Volts220 V
- Has nrtl listing certificationN
Current price is USD$2,689.00
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives between May 29 - Jun 2
|
Sold and shipped by Sunflower'yaxun Co.Ltd
4.022222222222222 stars out of 5, based on 90 seller reviews(4.0)90 seller reviews
Free 30-day returns
About this item
Product details
Product Overview:
The multifunctional angle iron processing machine is an efficient and professional processing device integrating three key functions of punching, chamfering and cutting. The motor drives the pump to provide power to quickly and accurately process the angle iron. The 3-in-1 structural design greatly saves the occupied space, reduces the purchase cost and remarkably improves the working efficiency. The processing machine is particularly suitable for steel structure processing, electricity iron tower and communication tower manufacturing, building decoration, repair workshops and other occasions needing frequent processing of angle iron.
Product Parameters:
Name: Angle iron processing machine
Model: HHM-75
Input voltage: 110V
Power of motor: 1500W
Chamfering ability: Iron plate below 6mm (0.23")
Cutting capacity: Iron plate 3-8mm (0.11-0.31")
Punching capacity: Iron plate below 6mm (0.23")
Oil filling requirement:
The product needs to be filled with 15# hydraulic oil, and the refueling amount is about 30L (7.93 us gal)
Machine size: 61×63×128cm (24*24.8*50.4")
Net weight: 145kg (319.6LBS)
Parameters of Punching Machine
Model: HHM-60
Punching ability: Angle iron 4-8#
Output: 31 Tons
Parameters of Chamfering Machine
Model: DJ-55
Bevel angle range: Angle iron below 5#
Oblique fillet range: Angle iron below 6.3#
Output: 16 Tons
Parameters of Cutting Machine
Model: HHJG-75
Cutting capacity: 75×75mm (2.95*2.95")
Output: 20 Tons
Attention:
1. The voltage of this product is 110V, please use the corresponding voltage, and do not use it wrongly to avoid burning the motor.
2. The adjusting switch in the electric box has been debugged before leaving the factory. Do not adjust it at will to affect the use.
3. Other equipment, except punching machine, is not allowed to be used with no load.
4. The oil (#15 hydraulic oil) to be used in the electric pump should be replaced every three months.
5. Clean the machine after use and brush it with anti-rust oil.
Operation Method:
1．Move the machine to the workplace and open the switch of the pulley at the bottom of the machine.
2．Fill the oil to the electric pump.
3．Confirm the control valve handles of the HHJG-75, DJ-55 and HHM-60 in the oil return state.
4．Push the green switch after the pump is connected with the power supply.
5．Before use the tool, press the machine with no material inside to exhaust the air of the tank and hose.
6．Control the handles to the corresponding tools when using the machine, and rotate the handles to the oil return state after use.
7．The handle should be in the oil return state when not using the machine, and push the red switch to cut off the power. After copper and aluminum bar processing, the electric pump must be timely relieved to avoid man-made damage.
Item Number: 057191
Angle Iron Processing Machine *1
The multifunctional angle iron processing machine is an efficient and professional processing device integrating three key functions of punching, chamfering and cutting. The motor drives the pump to provide power to quickly and accurately process the angle iron. The 3-in-1 structural design greatly saves the occupied space, reduces the purchase cost and remarkably improves the working efficiency. The processing machine is particularly suitable for steel structure processing, electricity iron tower and communication tower manufacturing, building decoration, repair workshops and other occasions needing frequent processing of angle iron.
Product Parameters:
Name: Angle iron processing machine
Model: HHM-75
Input voltage: 110V
Power of motor: 1500W
Chamfering ability: Iron plate below 6mm (0.23")
Cutting capacity: Iron plate 3-8mm (0.11-0.31")
Punching capacity: Iron plate below 6mm (0.23")
Oil filling requirement:
The product needs to be filled with 15# hydraulic oil, and the refueling amount is about 30L (7.93 us gal)
Machine size: 61×63×128cm (24*24.8*50.4")
Net weight: 145kg (319.6LBS)
Parameters of Punching Machine
Model: HHM-60
Punching ability: Angle iron 4-8#
Output: 31 Tons
Parameters of Chamfering Machine
Model: DJ-55
Bevel angle range: Angle iron below 5#
Oblique fillet range: Angle iron below 6.3#
Output: 16 Tons
Parameters of Cutting Machine
Model: HHJG-75
Cutting capacity: 75×75mm (2.95*2.95")
Output: 20 Tons
Attention:
1. The voltage of this product is 110V, please use the corresponding voltage, and do not use it wrongly to avoid burning the motor.
2. The adjusting switch in the electric box has been debugged before leaving the factory. Do not adjust it at will to affect the use.
3. Other equipment, except punching machine, is not allowed to be used with no load.
4. The oil (#15 hydraulic oil) to be used in the electric pump should be replaced every three months.
5. Clean the machine after use and brush it with anti-rust oil.
Operation Method:
1．Move the machine to the workplace and open the switch of the pulley at the bottom of the machine.
2．Fill the oil to the electric pump.
3．Confirm the control valve handles of the HHJG-75, DJ-55 and HHM-60 in the oil return state.
4．Push the green switch after the pump is connected with the power supply.
5．Before use the tool, press the machine with no material inside to exhaust the air of the tank and hose.
6．Control the handles to the corresponding tools when using the machine, and rotate the handles to the oil return state after use.
7．The handle should be in the oil return state when not using the machine, and push the red switch to cut off the power. After copper and aluminum bar processing, the electric pump must be timely relieved to avoid man-made damage.
Item Number: 057191
Angle Iron Processing Machine *1
- 3-in-1 Multifunctional Design: Integrates punching, cutting, and chamfering functions into one compact unit. Eliminates the need for multiple machines, saving workspace and reducing operational costs.
- High-Precision Hydraulic Performance: The punching module delivers clean, burr-free holes with regular shape and high positioning accuracy. The cutting module enables one-time angle iron cutting, reducing labor intensity and improving efficiency.
- User-Friendly Operation: Features an integrated control panel with indicator lamps and a foot pedal for hands-free operation. A pressure gauge provides real-time system pressure monitoring, ensuring safe and stable performance.
- Durable & Stable Build: High-performance driving motor provides reliable power for consistent operation. High-quality control valves ensure precise function switching with low fault rates.
- Portable & Versatile: Equipped with moving wheels for easy transport between work sites. Ideal for steel structure processing, tower manufacturing, and building decoration applications.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Height
50.4 in
Brand
Preasion
Weight
319.6 lb
Color
Yellow,Black
Warranty
Warranty information
Free return service not applicable if the product itself has no quality issues. And We provide one year technical support after it is delivered.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
