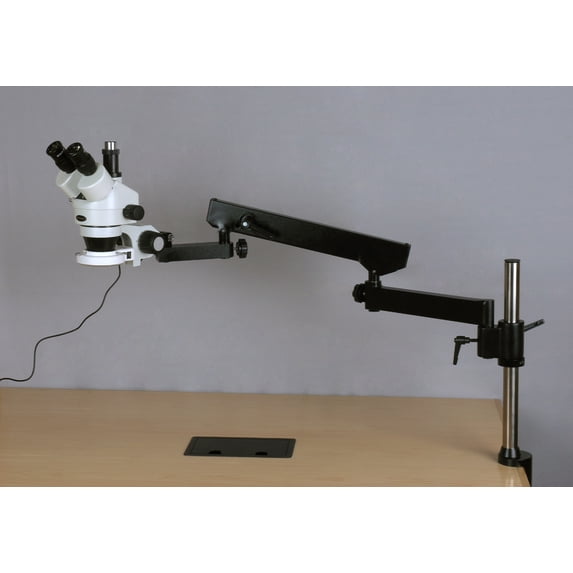

AmScope 3.5X-90X Simul-Focal 144-LED Articulating Zoom Stereo Microscope + 5MP Camera New

This is a great turnkey package for a simul-focal stereo microscope with an articulating pillar arm and a 5MP digital camera. It includes a 3.5X-90X simul-focal trinocular zoom microscope, an articulating pillar arm, a 144-LED ring light and a 5MP USB digital camera. This microscope features a unique simul-focal optical system with an adjustable trinocular port to enable well-focused clear images on your computer/video screen while simultaneously obtaining sharp, focused images through the eyepieces. Offering sharp and crystal clear images, this unit is a perfect stereo microscopy system for multiple applications. With 30mm super widefield, high-eyepoint optics, it provides a very large zoom magnification range (26:1) and a large working distance (8", 200mm). With a vertical pillar and a clamp, the articulating arm provides great flexibility. The LED ring light provides bright, even and cool illumination. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscopy system is great for both industrial and biological applications. It is an ideal instrument for manufacturing engineers, researchers, gemologists, lab technicians, and anyone in electronics and semiconductor industries. with a retail value of $3,400.

Features:

Unique high quality optical system allows simultaneous observation through both the eyepieces and the trinocular port

- You can have well-focused clear images on your computer or video screen while you get the images in the microscope in focus
- No fiddling needed to switch between the trinocular port and the eyepieces
- No fiddling needed to re-focus the microscope after each "switch"

30mm Super Widefield 10X Eyepieces

Sharp stereo images over a super widefield view

High resolution with great flatness and contrast

Crystal clear original true color images

Versatile heavy-duty articulating arm with a vertical pillar and a clamp

3.5X-90X (26:1) zoom magnification power range

45-degree inclined microscope Head

8" (200mm) large working distance

Accurate alignment reduces eye strain for a More Comfortable Observation

Both ocular tubes with adjustable diopters

Adjustable interpupillary distance

Full optical glass elements

Precise ground glass lenses

All metal mechanical components

Rubber eye-guards included

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications:

Head: 45-degree inclined, 360-degree swiveling trinocular

Eyepieces: 30mm super widefield high-eyepoint WH10X/20

Barlow Lens: 0.5X and 2.0X

Objective: 0.7-4.5X

Zoom Range: 26:1

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)

Working Distance: 8" (200mm)

Accessories: eye-guards

Camera Specifications:

Sensor: Aptina MT9P001

Sensor Type: CMOS

Sensor Size: 5.7x4.28mm

px Size: 2.2

Resolution: 5.1MP

Frame Rate: 5@2592x1944, 18@1280x960, 60@640x480

Sensitivity: 0.53 V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
