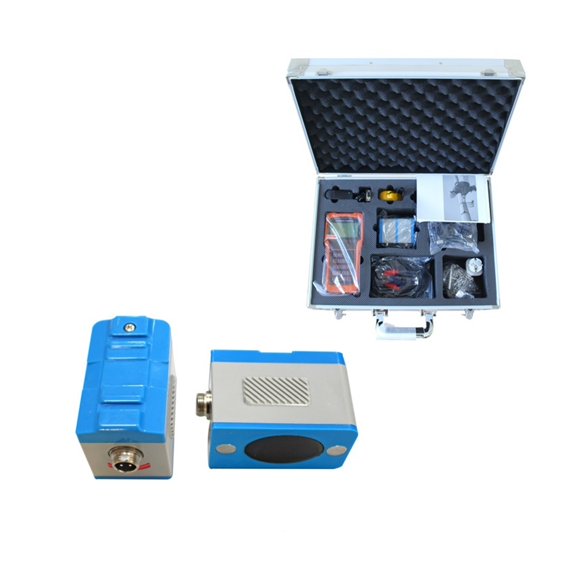

TUF-2000H Water Flow Meter TS-2 DN15~DN100mm TM-1 DN50~DN700mm TL-1 DN300~DN6000mm Handheld Digital Ultrasonic Flowmeter ,Complete Kit

Feature:

-Automatic memory for the first 64 days, the first 64 months, the first 5 years of cumulative flow.

-Compact and strong, advanced die-cast aluminum host and cones with accessories.

-Backlight LCD displays all instantaneous data and positive, negative, static cumulative flow, flow rate, time, analog input and other data.

Specification:

Item Type: Handheld Ultrasonic Flowmeter

Model: TUF-2000H

Measurement Accuracy: Flow ±1%, Heat ±2%

Sensor Probe Measuring Range: DN15-100mm(TS-2)/DN50-700mm(TM-1)/DN300-6000mm(TL-1)

Power Supply Mode: Rechargeable battery power supply (include charger)

Charging Time: 8 Hours

Use Time: 12 Hours or More

Working Power Supply: 90-230VAC (12 hours operation after sufficient charging) including Ni-H Lithium Battery 2000mAh

Accuracy Level: Indication Value ±1%, Flow Rate Greater Than 0.2m/s

Unit of Measure: Meter, Feet, Cubic Meter, Liter, Cubic Feet, Gallon

Applicable Pipe: Carbon Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, etc.

Liquid Type: More than 30 kinds of pure liquid such as pure water and tap water

Data Logging: Built-in data logger, can store 32Mbit memory

Medium Temperature: Conventional -30-90, high temperature type up to -30-150

Operating Temperature: Host: -30-90; Sensor: -30-90(Optional high temperature sensor)

Use Humidity: 85% of the host

Sensor Protection Level: IP67

Housing Material: Flame Retardant ABS

Host Material: Die-cast Aluminum

Communication Method: RS232C baud rate is 75-57600

Signal Output: 1 Channel OCT Pulse Output (pulse 6-1000ms, default 200ms)

Installation Method: External Installation

Package List:

1 x TUF-2000H Ultrasonic Flowmeter

1 x Sensor(TS-2/TM-1/TL-1 Optional)

1 x Tape Measure

1 x Tool Box

1 x Adapter

1 x OCT Data Line

1 x Steel Bracket Chain

1 x Standard Sensor Signal Cable 5m

1 x Instruction Manual

1 x adaptor

ATTENTION PLEASE:Due to the custom random check and shipping limit,the package will not include coupling agent !!!
