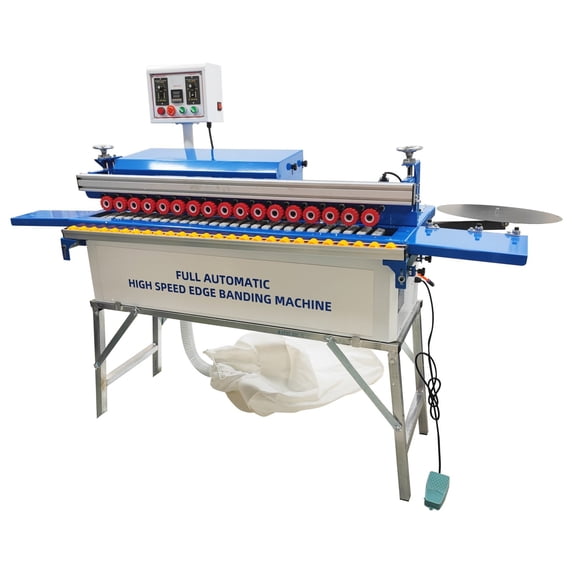

Woodworking Edge Bander Automatic Straight and Curved Edge Banding Machine
Key item features
- The independent operation panel is adopted to effective control over the temperature, the edge banding speed and the feeding speed, one-button start and digital control operation are designed to achieve trimming and polishing, and operation is independent, easy and efficient.
- The handwheel is matched with the clear scales to accurately adjust the height of the press beam, well adapting to different plates of different specifications and effectively improving the practicability and adaptability. The scales can clearly show the height, facilitating real-time monitoring.
- The machine is equipped with a straight edge banding mechanism and a curved edge banding mechanism, well meeting different edge banding requirements of boards with different shapes and improving the practicability and adaptability.
- The supporting plate is equipped with multiple rolling balls with high hardness and strength, facilitating smooth feeding and movement of the plates, saving time and labor during edge banding and enhancing the working efficiency.
- The polishing wheel can run at a high speed to conduct efficient polishing on the top and bottom, making the edge banding strip smooth and free of burrs and avoiding accidental injuries.
Specs
- BrandTechtongda
- MaterialPlastic
- FeaturesAdjustable, Rolling
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Product Overview:
The automatic edge banding machine is highly automatic and highly efficient woodworking machinery, is mainly used for sticking the edge band to the straight and curved edges of boards automatically, continuously and firmly, integrates the functions of automatic plate feeding, straight and curved edge banding, double-sided gluing, automatic band cutting, automatic end-to-end alignment, top and bottom trimming and double-sided polishing, and achieves intelligent edge banding operation. It is an ideal choice for the woodworking industry and the plate processing industry.
Product Parameters:
Voltage: 110V
Edge speed: 0-6m/min
Self-propelled motor power: 60W
Conveyor motor power: 25W
Polishing motor power: 400W
Edge cutting machine power: 800W
Edge thickness: 0.8-1.5mm
Edge height: 12-40mm
Heating time: 5-15min
Adhesive volume: 600ml
Trimming method: Double-sided trimming
Adhesion method: Double-sided adhesive coating
Control mode: Intelligent temperature control
Disconnection mode: Automatic band breaking
Attention:
1. Ensure that there are sufficient appropriate adhesives in the adhesive pot.
2. Be sure to conduct trial edge banding before normal production.
3. Please immediately press the emergency stop switch if there is material jamming, abnormal noise, smoking or odor.
4. Do not put hands into the machine during operation.
5. Use special tools to remove the stuck materials.
6. Regularly clean the residual adhesives, dust and other things with special tools.
7. Start edge banding only after the temperature reaches the set temperature.
8. When the machine is heating, do not put your hand into the edge strip groove to avoid burns.
9. During use, do not set the moving speed of the micro edge banding machine too fast or too slow. It should be controlled within an appropriate range.
Operation Method:
1. Fix the machine to the horizontal position firmly and stably.
2. Connect the machine to the 110V power supply, and pay attention to connecting the ground wire.
3. Add the appropriate amount of hot melt glue to the glue pot.
4. Place the edge banding strip and adjust the height limit column.
5. Adjust and lock the fitting wheel as needed.
6. Set the temperature through the temperature controller, adjust the motor speeds through the motor speed regulators, and start the motors after the temperature reaches the set temperature.
7. Press the foot switch, turn on the start switches, place the board on the chain conveyor belt or the rolling ball plate, and push the board to be subjected to the straight/curved edge banding, trimming and polishing operation.
Application
Suitable for side sealing: flexible melamine-impregnated paper, wood veneer, plastic and other furniture edge sealing materials, the rubber surface must be smooth.
Plastic side banding strip: must be coated with hot melt adhesive when heated without deformation. Plastic side tape, the coated surface must be pre-coated with back adhesive (can make the back side tape and hot melt adhesive activator).
Suitable for hot melt adhesives: medium and low temperature hot melt adhesives with melting point below 120℃-170℃.
Suitable for the workpiece frame: can be bonded with hot melt wood, flower board, medium fiber board, particle board and other plate frames.
Item included(033368):
Techtongda Automatic Edge Banding Machine 110V
- The independent operation panel is adopted to effective control over the temperature, the edge banding speed and the feeding speed, one-button start and digital control operation are designed to achieve trimming and polishing, and operation is independent, easy and efficient.
- The handwheel is matched with the clear scales to accurately adjust the height of the press beam, well adapting to different plates of different specifications and effectively improving the practicability and adaptability. The scales can clearly show the height, facilitating real-time monitoring.
- The machine is equipped with a straight edge banding mechanism and a curved edge banding mechanism, well meeting different edge banding requirements of boards with different shapes and improving the practicability and adaptability.
- The supporting plate is equipped with multiple rolling balls with high hardness and strength, facilitating smooth feeding and movement of the plates, saving time and labor during edge banding and enhancing the working efficiency.
- The polishing wheel can run at a high speed to conduct efficient polishing on the top and bottom, making the edge banding strip smooth and free of burrs and avoiding accidental injuries.
