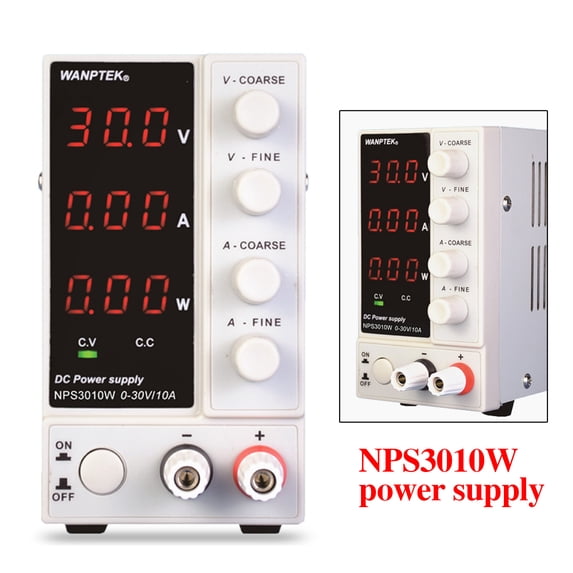

PEAKORA30V 10A 300W|DC Power Supply Regulated Adjustable Digital|Lab Grade Profession
Key item features
- This DC power supply is equipped with a high-definition display, which can clearly and intuitively show the resolution of the voltage, current, and power of the power supply, making it easy for users to visually observe the data.
- This DC power supply has an input voltage of 115V±5V. The wide voltage allows it to be used for wider purposes, so it is convenient for the users.
- his DC power supply can output a stable and continuous voltage and current. You only need to control the rotary button to ensure that the output is constant current and voltage.
Specs
- Amps10 Amps
- BrandUnbranded
- Rec. useLaboratory, Factories
- Weight2.87 lbs
- Has nrtl listing certificationN
- ModelNPS3010W
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Model: NPS3010W
Net Weight: 1.3kg/.2.87lbs
Gross Weight: 1.6kg/3.53lbs
Package Size: 11 *17 * 29cm/4.33*6.69*11.42inch
Product Size: 23*7*13cm/9*2.8*5.1inch
Input Power：AC 110V, 60Hz
Output Voltage: 0-30V
Output Current: 0-10A
Output Power: 300W
Working Temperature：0 ℃ - 40 ℃
Relative Humidity: < 80% RH
Storage Temperature：-10 ℃ ~ 70 ℃
Relative Humidity: < 70% RH
Constant Voltage Operation: Voltage Stability：0.1%
Load Stability: 0.2% ± 3MV
Ripple Voltage: ≤ 0.5% Vp-p
Continuously Adjustable from 0 to Rated Voltage
Constant Current Operation: Current Stability: 0.1% ± 3mA
Ripple Current: ≤ 0.5% Vp-p
Recovery Time: ≤ 500 μ s
Temperature Coefficient: ≤ 100ppm / ℃
0 to Rated Current Continuously Adjustable
Head Display : Three Window Digital Tube Display: Voltage, Current, Power
Display Accuracy: 0.5% + 3 Words
Display Staging Rate: Voltage 0.1V, Current 0.01A, Power 0.1w/1w
Key Features
HD DisplayExtensive Range of Input VoltageStable OperationHigh Efficiency
This DC power supply is equipped with a high-definition display, which can clearly and intuitively show the resolution of the voltage, current, and power of the power supply, making it easy for users to visually observe the data.This DC power supply has an input voltage of 115V±5V. The wide voltage allows it to be used for wider purposes, so it is convenient for the users.his DC power supply can output a stable and continuous voltage and current. You only need to control the rotary button to ensure that the output is constant current and voltage.The entire efficiency rate of this power supply is higher up to 70%, which allows this power supply to output stable current quickly.
Fast Heat DissipationEasy to OperateEasy to MoveGuaranteed Customer Service
The shell of this DC power supply is equipped with heat sinkholes to help dissipate heat inside the power supply. So even if it works for a long time, you don't have to worry about it will be burned out.This power supply can be used by turning on the switch after accessing the electricity. The voltage and current can be adjusted by rotating the spiral button, so it is very simple and easy to operate.This power supply is very small and lightweight. It measures 23*7*13cm/9*2.8*5.1inch and weighs 1.3kg/.2.87lbs, so an adult can easily move it.We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Details
Constant-current and Constant-voltage Indicators: There are two indicators on the electronic screen of this power supply, they are the constant-current ( c.c) indicator and the constant-voltage ( c.v) indicator. These two lights allow users to easily and quickly understand the constant current and constant voltage of the power supply.
Precise Spiral Buttons: The output voltage and current is controlled by two variable spiral buttons. These two resistors can adjust the voltage and current precisely. So you can adjust the right voltage and current according to your needs.
Application
This power supply is suitable for research institutes, laboratories, and factories, where the DC stable power supply is needed.
Package Included
1 * DC Power Supply
1 * Power Cord
1 * Output Line
1 * Operation Manual
