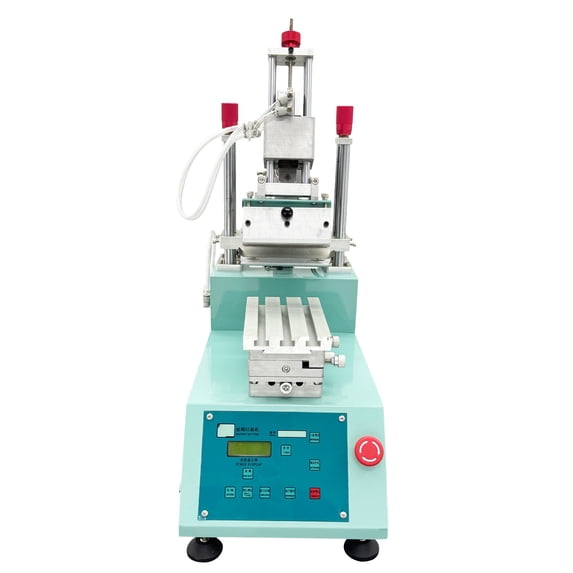

Semi-auto Screen Printing Machine High Precision Screen Printing Machine 110V

Introduction:
The desktop small semi-automatic rocker screen printing machine is a compact in structure, easy to operate and low in cost. It combines the flexibility of manual screen printing with the efficiency and consistency of partial automation, and is very suitable for small-batch production, sampling, DIY handmade production, small studios and so on.

Product Parameters
Voltage: 110V
Size of workbench (LxW): 20x12cm (7.9x4.7 inches)
Maximum operating speed: Up to 1600 times per hour
Up-and-down stroke of screen printing plate: Adjustable
Front-and-rear stroke of air cylinder: Adjustable
Machine size: 77x31x73cm (30.3x12.2x28.7 inches)
Net weight: 35KG (77.2LBs)

Attention
1. Before operating the screen printing machine, please ensure that you have fully known and understood all the safety precautions in the user manual.
2. During the operation, please always wear appropriate personal protective equipment, such as gloves and goggles, to ensure safety.
3. Do not touch the running parts during operation. Do not put the hands into the machine.
4. Only the trained operators are allowed to operate the machine.

Operation Method
1. Preparation before starting:
Check whether the installation of the whole machine is normal, whether the power supply voltage meets the requirements (usually 110V, 50-60Hz), whether the lubrication condition of each lubrication point is normal, and whether the system air pressure meets the working requirement (usually 0.4-0.6MPa).
2. Installation and adjustment of the screen printing plate:
Loosen the fixing screws of the screen printing plate, install the screen printing plate into the screen wall clamp, adjust the distance between the screen printing plate and the printed material to be 1-2mm, and then fix the screws.
3. Placement of the to-be-printed material:
Place the to-be-printed material on the workbench and fix it with clamps or fixtures to ensure that it will not move in the printing process.
4. Adjustment of the printing scraper:
Loosen the locking screw and use the adjustment knob to adjust the height of the printing scraper. By adjusting the air flow rate of the upper and lower flow limiting valves of the printing scraper head cylinder, the up-and-down speed of the printing scraper can be adjusted. You can also loosen the screw in the center of the printing scraper to adjust the horizontal position of the printing scraper.
5. Printing operation:
Turn on the power switch and air source switch, set the "Function Setting" to the "MAN" single cycle printing state, press the "Start/Stop" button or step on the foot switch to conduct printing.
6. Cleaning after printing:
Turn off the power switch and air source switch, use clean cloth or tissue to wipe the workbench, silk screen, scraper and other components, and remove residual ink and debris.

Item Number (056866): 1 x Small Rocker Screen Printing Machine 110V
