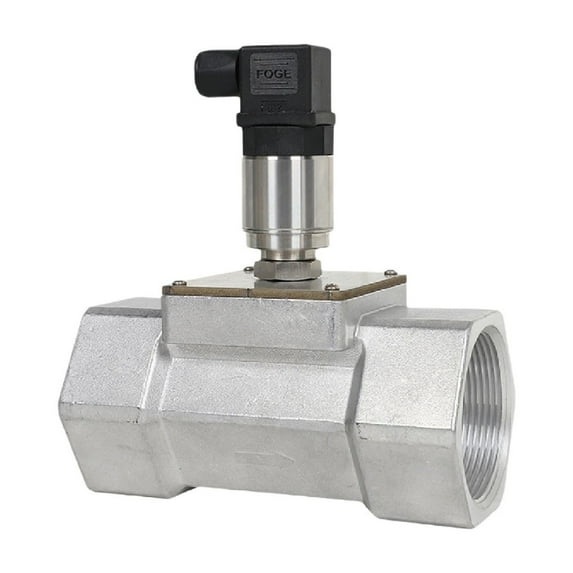

Liquid Turbine Flow Meter 4-20mA Flow Transmitter Pulse Output Water Diesel Chemical Oil Sensor Aluminum Alloy Fuel Meter

Monitor your water usage with confidence using our high precision flow meter. Designed for durability and accuracy, this water flow meter provides real-time tracking of flow rates and total consumption. Whether you need a reliable flow meter for industrial systems, agricultural irrigation, or home management, our device ensures leak detection and efficient water control with an easy-to-read display and simple installation.

1. Default configuration

Material: Aluminum alloy

Power supply: 24VDC (12-24VDC range)-

Connection type: Internal thread External thread, flange, clamp

Diameter (DN): DN25, DN40, DN50 Other sizes available on request

Output signal: Pulse/4-20mA RS485 (Modbus)

Temperature measurement range: -10°C to 60°C, up to 150°C (high temperature model)

Rated pressure: 0.7MPa, higher pressure models available

2. Technical parameters

Parameter specifications

Measurement medium: water, urea, diesel, slightly corrosive liquids

Accuracy: ±0.5%

Nominal pressure: 0.7MPa (higher pressure levels can be customized)

Medium temperature: -10°C to 60°C (up to 150°C can be customized)

Environmental conditions: -10°C to 60°C

Power supply: 12-24VDC

Output signal: three-wire pulse, two-wire 4-20mA, four-wire RS485

Material: 304 stainless steel, aluminum alloy (default)

Connection type: internal thread (default), external thread, flange, clamp

3. Main features

Multiple output options supports pulse, 4-20mA and RS485, flexible integration.

High durability made of 304 stainless steel and aluminum alloy, corrosion-resistant.

Precision measurement machined impeller ensures accuracy of ±0.5%.

Easy to install default internal thread for quick and easy installation.

4. Applications

Industrial liquids: diesel, methanol, light chemicals.

Beverage production: soft drinks, juice.

Agricultural irrigation: precise water measurement.

Medical/Pharmaceutical: liquid chemicals and pharmaceutical manufacturing.
