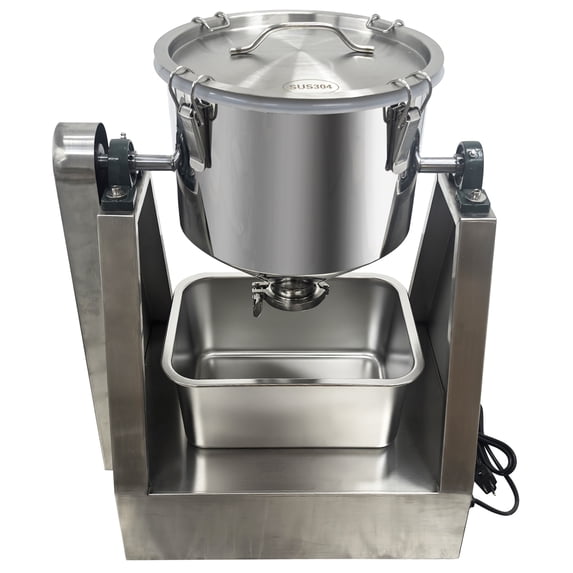

20L Electric Stainless Steel Blender Laboratory Dry Powder Blender Adjustable Speed Timer

Product Overview:
The stainless steel drum mixer is a professional mixing device specifically designed for uniform mixing of various powdery and granular materials, has the high mixing degree, and can also achieve good mixing for ingredients with small addition amount. The machine adopts mechanical sealing which prevents powder leakage, and the bearing has a long service life. The forward and reverse stirring time, the total stirring time and the rotating speed can be freely adjusted as required. The powder mixing machine has the advantages of being high in mixing efficiency and working efficiency, low in labor intensity and easy to operate and control, and is suitable for the food industry, the magnetic powder industry, the ceramics industry, the chemical industry, the feed industry and other industries.

Product Parameters
Power supply: 110V 120W
Capacity of mixing tank: 20L
Maximum load capacity: 10kg
Main material: Stainless steel
Size of mixing tank: Φ30*38cm (11.81*14.96 inches)
Size of collecting box: 35.5*26.5*15cm (13.98*10.43*5.91 inches)
Product size: 53*38*72cm (20.87*14.96*28.35 inches)
Net weight: 20kg (44.09LBS)

Attention:
1. The machine uses the 110V power supply. Before the power switch is turned on, be sure to confirm that there are no other idle people around the equipment.
2. During the operation of the machine, it is strictly prohibited to touch the running parts and the dangerous parts of the machine, or to put your hands inside the safety cover or safety baffle.
3. When the machine is working, the operator should pay attention to the coordination of the machine sound and other things, if the abnormal sound, abnormal vibration, the temperature, the load or other abnormalities will cause damage to the safety, be sure to stop the machine in time to check the machine and report to the person responsible for the management, and operate the machine in accordance with the instructions.
4. Before cleaning, checking or moving the machine, be sure to disconnect the power supply.
5. If the machine stops for an unknown reason, it can be restarted only with the permission of the technician and the person responsible for management.
6. When switches or electronic components have faults, it is prohibited to restart the machine before repairs have been completed.
7. The tools and other things used during production must be organized to a fixed storage location after use. Once the tools, screws, nuts and other things are mixed into the mixer, it may cause product quality problems.
8. After production is completed or when processed materials are changed, it is necessary to use tools such as brushes for sweeping and cleaning work. In the cleaning process, it is necessary to check the machine to prevent foreign objects from entering the bucket.
9. Before starting work every day, check whether there are any loose or disconnected parts of the machine, and regularly lubricate and maintain the moving bearing components of the machine.

Operation Method
1. Preparation work:
Prepare the materials to be mixed in advance, check if the mixer is in good condition, and ensure that the working area around the mixer is clean, and the start/stop switch is in the working state.
2. Panel settings:
Set the forward and reverse rotation stirring time (steering controller) and total stirring time (timed shutdown) in the shutdown state (S-seconds, M-minutes, H-hours). For example, the steering controller is set to 03S05M, which represents forward rotation for 5 minutes, reverse rotation for 5 minutes, and the 3-second interval between forward and reverse rotation; and the timed shutdown is set to 020M, which represents the total stirring time of 20 minutes.
Special attention: After each setting is completed and the total stirring time is over and the machine stops, you need to press the reset button to start a new round of work according to the settings.

3. Sample addition:
Close the discharging outlet of the mixer, open the feeding inlet of the mixer, and pour the materials prepared in advance into the mixer.
4. Sample mixing:
Turn on the start/stop button, set the rotating speed and time, observe the effect of material mixing, and adjust the rotating speed and mixing time appropriately;
5. Sample discharge:
Place the designated container under the discharging outlet, open the discharging outlet to start discharging. The materials can also be discharged through the feeding inlet, depending on the specific needs and on-site conditions.

Item Number (122168):
1 x Electric Stainless Steel Powder Mixer 20L 110V
