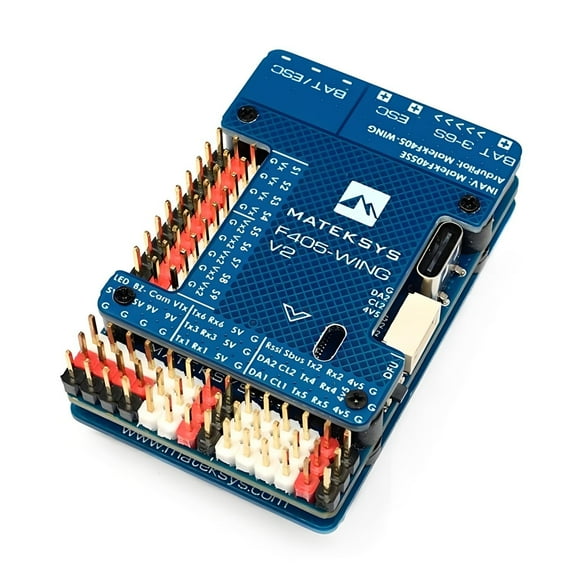

Matek F405 Wing V2 Flight Controller with OSD & Blackbox for RC Airplane Fixed Wing Drone, 3–6S LiPo

The Matek F405 Wing V2 Flight Controller is a feature-rich control solution designed for RC airplanes, flying wings, and fixed-wing drones. Built around the STM32F405 MCU, it offers reliable processing performance and broad firmware compatibility, supporting both ArduPilot and INAV systems.

This controller integrates essential components including an on-screen display (OSD), barometer, and MicroSD Blackbox, reducing wiring complexity and simplifying aircraft builds. Real-time telemetry data and onboard flight logs help pilots monitor and review flight performance with ease.

Supporting a wide 3–6S LiPo input range, the F405 Wing V2 includes built-in voltage protection and a high-capacity current sensor for accurate power measurement. Multiple BEC outputs provide stable power for servos, receivers, and peripherals, while the adjustable servo voltage output supports a variety of control setups.

With 6 UART ports, 10 PWM outputs, multiple I2C and ADC inputs, and a compact lightweight design, this flight controller is suitable for both advanced hobbyists and professional fixed-wing applications where reliability, integration, and flexibility are required.

📋 Specifications

Model: Matek F405 Wing V2

MCU: STM32F405RGT6 (168MHz, 1MB Flash)

IMU: ICM42688-P

Barometer: DPS310

OSD: AT7456E

Blackbox: MicroSD Card Slot

Input Voltage: 9–30V (3–6S LiPo)

Current Sensor: 100A Continuous / 220A Peak

BEC Outputs: 5V / 9V / 12V

Servo BEC: 5V / 6V / 7.2V Adjustable

PWM Outputs: 10 Channels

UART Ports: 6

Dimensions: 54 × 36 × 13 mm

Weight: Approx. 25g

📦 Package Includes

1 × Matek F405 Wing V2 Flight Controller

1 × JST-GH I2C Cable (20cm)

1 × Unsoldered Pin Set
