72MM Cylinder Piston Gasket Kit for Suzuki GN250 GN250E DR250 DR250S GZ250 TU250

72mm Cylinder Piston Gasket Top End Rebuild Kit For Suzuki GN250 DR250 S Marauder 250 TU 250 X

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

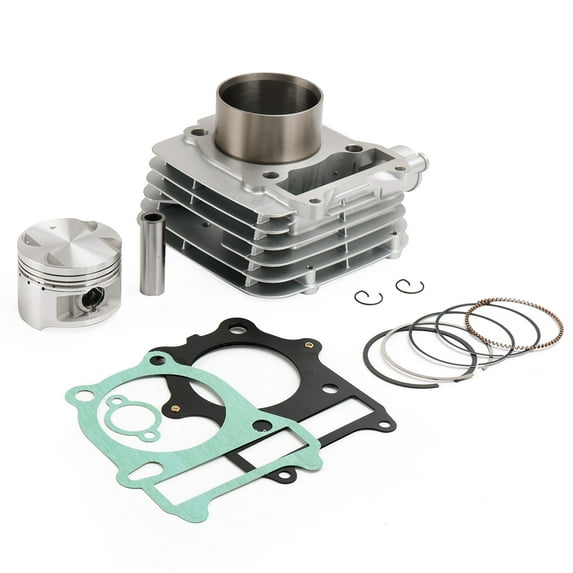

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 72mm, 18mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 249cc
Bore Type: Standard Bore
Bore diameter: 72mm
Pin diameter: 18mm

Replacement Part Number:
Cylinder: 11210-38204-0F0
Cylinder Base Gasket: 11241-38301
Cylinder Head Gasket: 11141-38201
Tensioner Gasket: 12837-24A10
Piston (Std): 12111-38201-0F0, 12111-38201
Pin, Piston: 12151-15501
Piston Ring Set (Std): 12140-49270, 12140-49280
Circlips, piston: 09381-18002

Fits Models:
Fit for Suzuki DF250 - Years 1987
Fit for Suzuki DR250 - Years 1982 1983
Fit for Suzuki DR250S - Years 1984 1985 1986 1987 1989
Fit for Suzuki GN250 - Years 1982 1983 1985 1988 1989 1990 1991 1992 1993 1994 1996 1998 1999 2000 2001
Fit for Suzuki GN250E - Years 1982 1991
Fit for Suzuki GZ250 Marauder - Years 1999 2000 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
Fit for Suzuki TU250X - Years 1997 1998 1999 2000 2001

Fit for Italika Tornado 250 TC250 2005-2008

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package includes:
1x Cylinder
1x Piston
1x Piston Ring Set
1x 18mm Wristpin
2x Circlips
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
