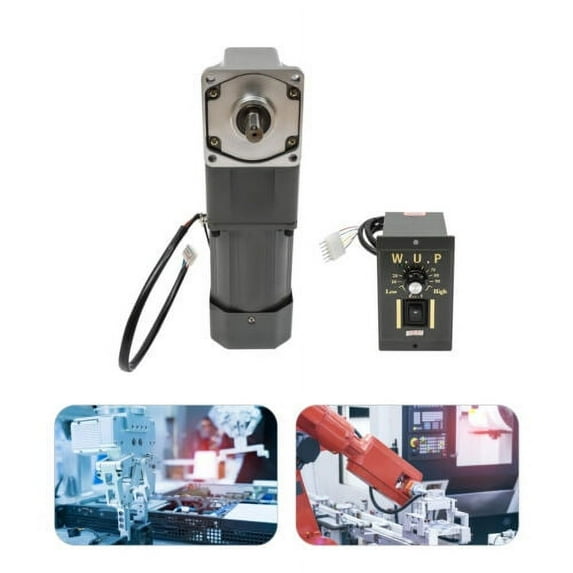

30k Electric Variable Speed Controller 90° Right Angle Output Reduction Motor

The 120W speed reduction motor provides high efficiency for your work and allows you to save a lot of working time. The governor with high accuracy and wide speed range allows you to adjust the right speed for different applications. And with its high torque, it will be your powerful working partner! This product can be used in packaging, printing, textile, printing and dyeing, chemical, food, pharmaceutical, and other engineering machinery, as well as advertising, office, petrochemical, instrumentation, stage lighting, transmission, automated warehouse, parking lot, and other equipment.

Speed Range

1. The lower the governor's speed, the slower the speed, the smaller the force. The normal reasonable speed range is 50%~100%.

2. The larger the speed ratio, the slower the speed, the greater the force; the smaller the speed ratio, the faster the speed, the smaller the force. (Example: Both are 20 revolutions, but the 20 revolutions directly from the reducer are 2-3 times smaller than selecting a 40 revolution and then adjusting to 20 revolutions.)

Specification

Material: Medium Carbon Tempered Steel

Color: Dark Grey

Process: Plastic Spraying, One-piece Forming, Heat Treatment

Type: Medium Solid Motor

Reduction Ratio: 1:30 (30K)

Power Supply: Wiring

Voltage: 110V

Power: 120W

Torque: 20NM

Rotational Speed: 45R/MIN

Output: 90° Right Angle Output

Gross Weight: 8kg/ 17.64 lbs

Total Height: 31.9cm/12.6in

Reduction Box Size: 9*9cm/3.5*3.5in

Governor Size: 10*6*9cm/3.9*2.4*3.5in

Package Size: 33*16*12 cm/ 12.99*6.3*4.72 in

Package Included

1 * Speed Reduction Motor

1 * Speed Governor

1 * English Manual

All Accessories for Installation

Notes

Our motors do not include the power cord and the bracket.

Please do not plug and unplug the power cord with the power on. Please do not knock on the machine.

The speed reduction motor is composed of a motor and a speed reduction gear. Different speed ratios can achieve different speed regulation ranges, and they have different strengths.

The speed of the output shaft is different under different reduction ratios. When the gearbox decelerates, the higher the reduction ratio, the higher the force. The slower the speed regulated by the governor, the lower the torque.

The motor can run for a long time within the safe speed regulation range. The safe speed regulation range for small loads is 50% of full speed-full speed. The safe speed regulation range for large loads is 70% of full speed-full speed.

Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
