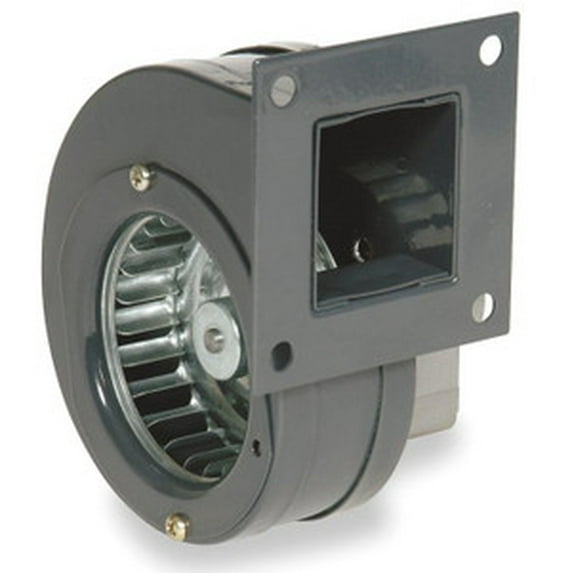

Dayton Model 1TDN4 Blower 49 CFM 3034 RPM 115V 60hz (4C761)

Acting as a direct replacement for many OEM blowers with the same physical footprint, this dynamically balanced blower provides smooth and quiet operation. Noise and vibration are held to a minimum to maintain CFM at higher static pressures. The motor has cast-aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life. The min./max. operating temperature range is -20° to 104°F.

Note: Not for use with speed controllers

Performance Data

• CFM @ 0.000-In SP: 49
• 115 Volts, 50-60 Hz, 1 Phase
• Max Ambient Temp: 104 Deg F
• Full Load Amps: 0.50
• Motor RPM: 3034
• Dimensions: overall height 4-1/2", overall width 4-3/16", overall depth 4-1/2"

• Automatic Overload Protection
• Noise and vibration are held to a minimum to maintain CFM at higher static pressures.
• UL Recognized US and Canada (E47479), CE.
• Direct replacements for many OEM blowers with same physical footprint
• All-position mounting
• Min./max. operating temp. range: -20 Degree to 104 DegreeF
• Motor enclosure: open
• Includes discharge mounting flange
• Wheel Type: Forward Curve
• Blower Outlet Shape: Rectangular
• Non Reversible: Blower has no power cord or switch
• Replaces 4C761
