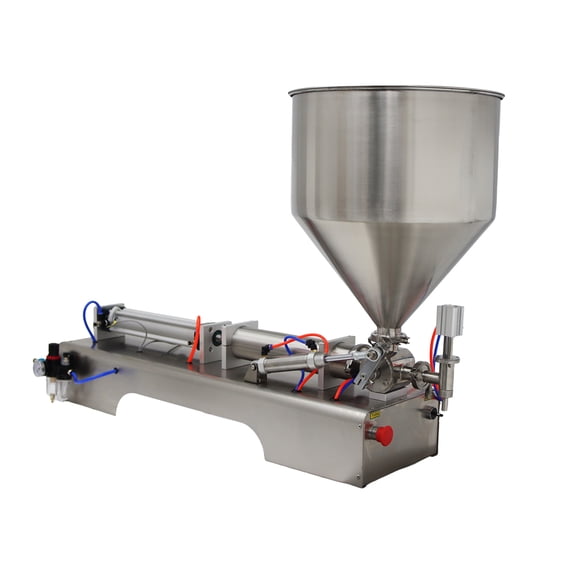

Paste Liquid Filling Machine Single Nozzles 100-1000ml Pneumatic Stainless Steel Piston Filler

Product Overview：
The semi-automatic piston filling machine produced by our company has the advantages of simple and reasonable structure, high precision, convenient cleaning and simple operation. The contact area with the material is made of 304 stainless steel, in line with GMP requirements. The sealing parts are made of PTFE and silica gel. They have the advantages of corrosion resistance, aging resistance, high temperature resistance, good sealing and so on. They are ideal filling equipment for food, pharmaceutical, chemical, daily chemical, petroleum, pesticide and other industries.
This machine has two methods, foot switch filling and continuous automatic filling; the two filling methods can be switched arbitrarily. It is recommended to use the foot switch for filling at the beginning.
This product is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid.
The filling volume range is between 100ml - 1000ml. And the machine should connect air compressor for working. First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.
This series of models need to be equipped with external air compressor, air compressor exhaust should not be less than 0.1m3/min, equipped with pressure should be able to adjust to 0.4-0.9Mpa range.
(Note1:We only sell machines, do not match air compressors, customers need to buy their own.)
(Note2: If you are not sure whether the material can be filled with this machine, please consult before placing an order)


Product Parameter:
1. Voltage: 110V/60Hz
2. Material: The surface is stainless steel
3. Pneumatic
4. Filling volume (ml): 100 - 1000
5. Filling accuracy (FS): ±0.5%
6. Production capacity (cycle/min): 1-25
7. Applicable tolerance (m3/min): ≥0.1
8. Exterior sizes（Without hopper: 38.97*11*29.7in(99*28*75.5cm)
9. Net weight (kg): 28.7kg （63.3 lb）
10. Applicable pressure (Mpa): 0.4-0.9

This machine is suitable for materials with poor fluidity, such as water, shampoo, toothpaste, honey, cream, lotion, butter, ice cream and so on.

Affected by the following factors at work:
1. The factors that affect the filling accuracy are: the stability of the compressed air, the uniformity of the material, the filling speed, etc.
2. The factors that affect the filling speed are: the viscosity of the material, the stroke of the cylinder, the size of the cylinder, the size of the discharge nozzle, the proficiency of the operator, etc.

Item Included:160400
110V Paste Liquid Filling Machine
