Hero image 0 of Bracelet Shaping Machine Electric Bangle Forming Machine Bracelet Bending Machine 220V, 0 of 12

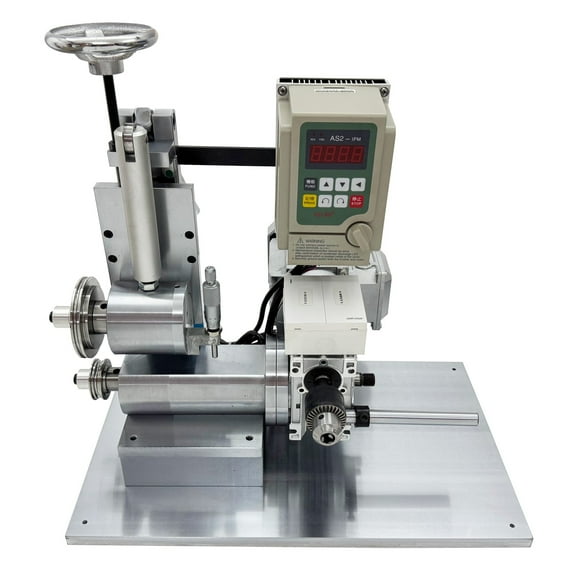

Bracelet Shaping Machine Electric Bangle Forming Machine Bracelet Bending Machine 220V

(No ratings yet)

Key item features

The control panel can achieve precision control over jewelry shaping, press polishing and wiredrawing, different parameters can be digitally displayed on the LCD screen, and stepless speed regulation is well achieved.
The high-performance driving motor can provide stable driving force for the shaping machine, ensuring the machine operates for a long time stably and reliably, and the motor has a longer service life and higher quality.
The manual press rod is detachably installed to move the upper mold up and down so as to shape the bracelet. The operation is easy and convenient, and the mold can better adapt to different bracelets during use.
The multifunctional collet can be matched with multiple rubber molds for polishing and press polishing processes and can easily lock and unlock the molds during use, effectively improving the processing efficiency and fixing effect.
The firm base is designed for effectively supporting the machine body and preventing the machine body from skidding during operation. The base can be firmly fixed to the workbench through screws.

Specs

Jewelry casting machine type
Jewelry Casting Machine
Power type
Corded Electric
Features
Digital
Volts
220 V
Brand
Techtongda
Height
19.3 in

Price when purchased online

Report an issue with this seller

More seller options (1)

Starting from $2,258.00

About this item

Product details

Product Overview:
The multifunctional electric bracelet shaping machine is a professional jewelry processing machine specifically designed for shaping, press polishing and wiredrawing of bracelets, finger rings and other jewelry. The precision transmission structure and the replaceable modular mold set are combined to effectively improve the jewelry shaping efficiency and precision. The jewelry processing machine can be widely applied to jewelry repair shops, pawn shops, individual studios, jewelry quality inspection stations and so on.

Product Parameters:
Model: JY-ZX1210
Voltage: AC220V 60Hz 1-phase
Power: 550W
Bracelet type: Hollow circular bracelets
Diameter range: 20-65mm (0.78-2.56 inches)
Mold specification: 4.4mm (0.17 inch) (Other mold specifications can be customized.)
Machine size: 52x44x49cm (20.5x17.3x19.3 inches)
Net weight: About 53kg (116.8LBs)

Attention:
1. Do not touch the running parts during operation. Do not put the hands into the machine.
2. Ensure reliable and safe grounding of the equipment before use.
3. Do not process brittle gemstone jewelry or high-rigidity accessories.
Operation Method
1. Install the shaping mold set/rubber strip/universal sleeve according to the processing demands of jewelry.
2. Connect the machine to the 220V power supply with reliable grounding, and turn on the control switch.
3. Press the control keys to set the processing parameters and rotate the knob to adjust the speed.
4. Start to conduct shaping/press polishing/wiredrawing operation as required.
5. After the jewelry is processed, turn off the control switch and unplug the machine.
6. The operator can also conduct manual shaping operation according to the steps of rotating the manual press rod to move the upper mold downwards, adjusting the micrometer to control the pressing force and rotating the handwheel to shape the bracelet.
7. After use, remove the residues on the machine, and clean the machine thoroughly.

Item included(057160):
Techtongda Bracelet Shaping Machine 220V

The control panel can achieve precision control over jewelry shaping, press polishing and wiredrawing, different parameters can be digitally displayed on the LCD screen, and stepless speed regulation is well achieved.
The high-performance driving motor can provide stable driving force for the shaping machine, ensuring the machine operates for a long time stably and reliably, and the motor has a longer service life and higher quality.
The manual press rod is detachably installed to move the upper mold up and down so as to shape the bracelet. The operation is easy and convenient, and the mold can better adapt to different bracelets during use.
The multifunctional collet can be matched with multiple rubber molds for polishing and press polishing processes and can easily lock and unlock the molds during use, effectively improving the processing efficiency and fixing effect.
The firm base is designed for effectively supporting the machine body and preventing the machine body from skidding during operation. The base can be firmly fixed to the workbench through screws.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Jewelry casting machine type

Jewelry Casting Machine

Power type

Corded Electric

Features

Digital

Volts

220 V

Warranty

Warranty information

3 months' warranty for the machine, not for the consumables.We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. We do not bear the return freight for returns other than product quality.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
