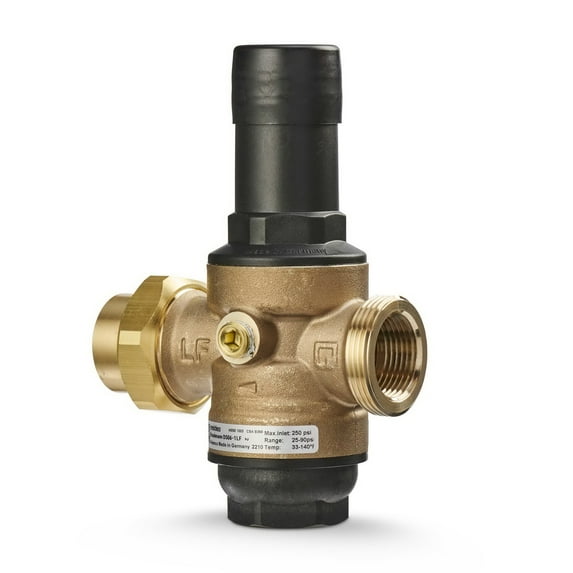

(Price/Each)Honeywell DS06-102-SUT-LF 1" DS06 "Dialset" Low Lead Pressure Regulating Valve (PRV) - Single Union NPT, Max Inlet 250 Psi, 25-90 Psi Out

Price is for each.

Manufacturer Part Number: DS06-102-SUT-LF

HONDS06-102-SUT-LF 1 DS06 Dialset Low Lead Pressure Regulating Valve (PRV) - Single Union NPT Max Inlet 250 PSI 25-90 PSI Out

Part Description:

• Pressure Regulating Valve
• Nominal Size 1 Inch
• End Connection Female Threaded x Female Threaded
• Body Material Bronze
• Diaphragm Material Fabric Reinforced
• Downstream Pressure Range 25 to 90 PSI
• Standard Factory Setting 60 PSI
• Strainer Supplied Yes
• Temperature Rating 140 Deg F
• Pressure Rating 250 PSI
• Inclusions/Features Dial Set, Non-Corroding Unitized Cartridge, Strainer
• Application Potable Water and Irrigation
• Applicable Standard CSA B356, ASSE 1003, IAPMO/UPC, NSF 61
• Lead-Free
• Overall Dimension 3-15/64 Inch Length x 6-15/16 Inch Height
• Gauge Tap Size 1/4 Inch Threaded
• Union Fitting Type Single Union Threaded

Features / Benefits

• The Honeywell Ds06 Dial Set Pressure Regulating Valve is a High Quality Pressure Regulating Valve that Maintains a Constant Outlet Pressure Over a Wide Range of Inlet Supply Pressures
• It is Suitable for Potable Water and Irrigation Applications
• The Downstream Pressure Adjustment Dial Eliminates the Need for a Pressure Gauge When Adjusting the Pressure Setting
• Built-In Dial-Set No Gauge is Needed to Install or Set Static Pressure
• Non-Corroding Unitized Cartridge Contains All Working Parts and is Easily Replaceable
• Outlet Adjustment Range of 25 PSI to 90 PSI Make it Suitable for Household, Commercial, Industrial and Turf and Irrigation Applications
• Install it Just About Anywhere
• The Internal and External Threading Allows for Use in Thread by Thread, Single Union Configurations
• 1/4 Inch Threaded Tap Accessible from Both Sides to Validate Output
• Built-In Strainer to Simplify Maintenance
• Lead-Free
