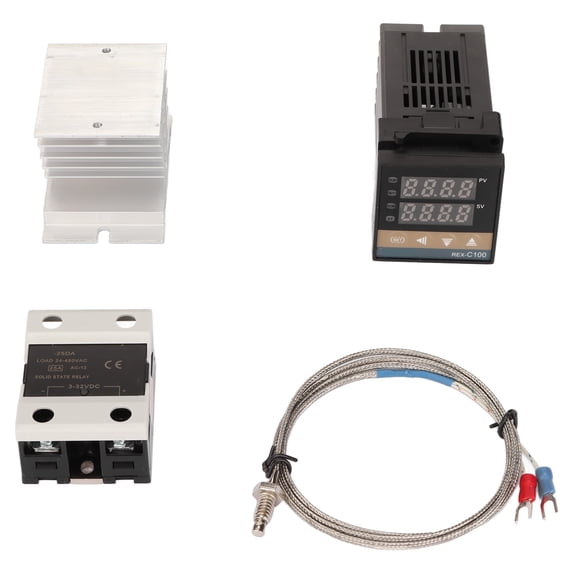

PID Temperature Controller, K Thermocouple 100-240V Digital PID Thermostat Solid State Relay For Incubator

Digital PID Thermostat Accurate Temperature Controller with K Thermocouple Heat Sink Solid State Relay for Farm
Specification:
Item Type: PID Thermostat Set
Product Material: Plastic
Thermostat:
Thermostat Appearance Size: Approx. 48 x 48 x 110mm / 1.9 x 1.9 x 4.3in
Model: REX C100FK02 V DN
Measurement Accuracy: ±0.5%FS
Additional Cold End Compensation Error: 0-50 degrees Celsius , Can Be Modified By Software ± 2 degrees Celsius
Resolution: 14 Bits
Sampling Period: 0.5 Seconds
Power Supply: AC 100-240V 50, 60HZ
Process Value PV, Set Value SV
Output, Alarm and Self Tuning Can Be Indicated By: LED
PIN Control Including ON, OFF, Step PID and Continuous PID
Self Adjusting Control
Delay Output: Contact Capacity 250V AC 3A Resistive Load
Alarm Function Output: 2 Way
Proportional Band P: 0 to Full Range When ON, OFF Control Is Set to 0
Detection Temperature Range: 0-400 degrees Celsius
Insulation Resistance: > 500M Ohm 500V DC
Insulation Resistance: 1500V AC per min
Insulation Resistance: Power Consumption <10VA
Service Environment: 0-50 degrees Celsius
Non Corrosive Gas Environment: 30-85% RH
Scope of Application: Electric Power, Chemical Industry, Injection Molding, Packaging, Food, Incubator, Oven, Heater Control, etc
K Thermocouple Probe Cable:
Length: Approx. 1m/3.3ft
Sensor Diameter: Approx. 4.5mm/0.18in
Temperature Range: 0-400 degrees Celsius
Inner Insulation: Glass Fiber
External : Insulation
Solid State Relay:
Output Voltage Range: Standard Type
Input Voltage: DC 3-32V
Output Voltage: 24-480V AC
Heat Sink:
Material: Aluminum
Size: Approx. 80 x 49 x 50mm / 3.1 x 1.9 x 2in

Package List:
1 x PID Thermostat1 x Thermocouple1 x Heat Sink1 x Relay1 x Chinese and English Manual1 x Thermostat Bracket


Note:
Manual measurement, please allow some errors.
