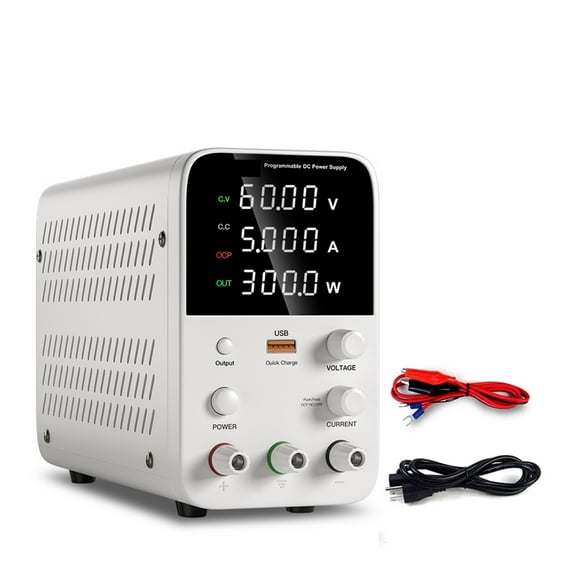

30V 10A Programmable DC Power Supply Adjustable Digital Display Mini Lab Power Conditioner 60V 5A 120V3A For Cell Phone Repair ,Voltage Consistency

This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

Output Power

150W/300W/320W/360W

Output voltage

0~30V/60V/120V/160V

Output current

0~2A/3A/5A/10A

Working temperature:0-40;relative humidity:<80%RH

Storage temperature:-10-70;relative humidity:<70%RH

Constant voltage CV

Voltage stability:0.1%±3mV

Load stability:0.2%±3mV

Ripple voltage:0.5%Vp-p

0 to rated voltage continuously adjustable

constant current CC

Current stability:0.1%±3mA

Load stability:0.2%±3mA

Ripple current:0.5%Vp-p

Recovery time:500S

Temperature coefficient:100ppm/

0 to rated current continuously adjustable

1. Production line test.

2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD.

3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.

4. Charge the battery.

5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use

6. All other occasions requiring DC power supply.1x DC power supply

1x power cord

1x Test line

1xInstructions
