Auto Body Shop Frame Machine 2D Measuring System For Car Auto Body Repair Tool
Key item features
- Professional Tool: This product is designed to improve the accuracy and convenience of testing and measurement in the repair of accident vehicles, with few limitations of the site or equipment, and will not damage the car body.
- Easy to Use: With its high strength, small size, light weight, and equipped CD that includes the usage video, one person can master the usage as soon as possible and complete measurements independently.
- Portable Design: The carrying case with grooves, buckles, and a handle can store these tools safely and make it easy to carry to the workplace.
- Complete Set: The kit includes 3 measuring scales, different types of probes, and other accessories, allowing you to choose the most appropriate tool for the measurement situation, making measurement work easier and less laborious.
- High Precision: It has a measurement error of ±1mm, together with its high-precision structure design, which ensures the accuracy of your measurements.
Specs
- Manufacturer part number/
- BrandUnbranded
- Vehicle fitment typeSpecific
- FeaturesAdjustable
- Has written warrantyNo
- Pieces2
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Description
This is a high-precision 2D measuring ruler system, which is mainly used for enhancing the accuracy and convenience of testing and measurement in the repair of accident vehicles. You can make precise measurements with this ruler, which is convenient for you to make a reasonable judgment on the condition of your car. In addition, this product is fully equipped with accessories for your convenience.
Key Features
Professional Tool: This product is designed to improve the accuracy and convenience of testing and measurement in the repair of accident vehicles, with few limitations of the site or equipment, and will not damage the car body.
High Precision: It has a measurement error of ±1mm, together with its high-precision structure design, which ensures the accuracy of your measurements.
Complete Set: The kit includes 3 measuring scales, different types of probes, and other accessories, allowing you to choose the most appropriate tool for the measurement situation, making measurement work easier and less laborious.
Portable Design: The carrying case with grooves, buckles, and a handle can store these tools safely and make it easy to carry to the workplace.
Easy to Use: With its high strength, small size, light weight, and equipped CD that includes the usage video, one person can master the usage as soon as possible and complete measurements independently.
Application

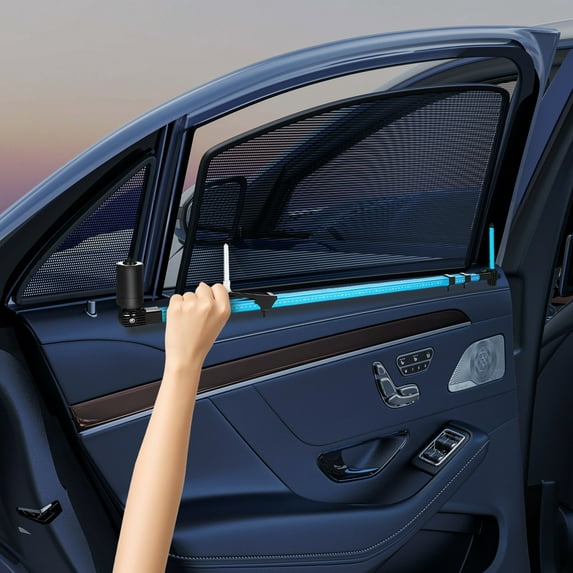

It can measure many parts such as the vehicle chassis, doors, windows, trunk, engine compartment, wheelbase, and so on.
How to Use
1. When measuring small dimensions up to 35.43in, a drawing-measuring ruler is not required. Use the slide rule according to the position of the distance measuring point.
2. The level (level in the level display) displays the measured value. Read the measurement reading on the slider.
3. When measuring dimensions of approx. 70.87in, use the stretched inner bar and measure according to the level displayed on the level meter. The measurement reading is read on the slider holder. Smoothly pull the scale (at the level shown on the level meter) during the measurement.
4. The vertical scale is located directly at the point of measurement, is adjustable up and down, and is screwed in the vertical position to maintain the level (at the level shown on the level meter).
Specifications
Material: Aviation Aluminum
Process: Electrophoresis
Style: Modern
Color: Blue, Black
Assembly Required: Yes
Measurement Error: ±1mm/0.04in
Measurement Range:
X-axis: 200~2250mm/7.87~88.58in
Y-axis: 20~150mm (or 340 mm)/0.79~5.91in(or 13.39in)
Z-axis: 20~150mm (or 340 mm)/0.79~5.91in(or 13.39in)
Scale Length: 95cm/37.4in; 38cm/14.96in; 17cm/6.69in
Package Size: 21*102*10cm/8.27*40.16*3.94in
Gross Weight: 4.2kg/9.26lbs
Net Weight: 3.5kg/7.72lbs
Package Included
1Set * High-precision 2D Measuring Ruler System
1* CD
1* Chinese & English Manual
All Accessories for Assembly
Notes
1. Please double-check the size before ordering.
2. Please read the instructions before use to ensure that the measuring ruler can be used correctly.
