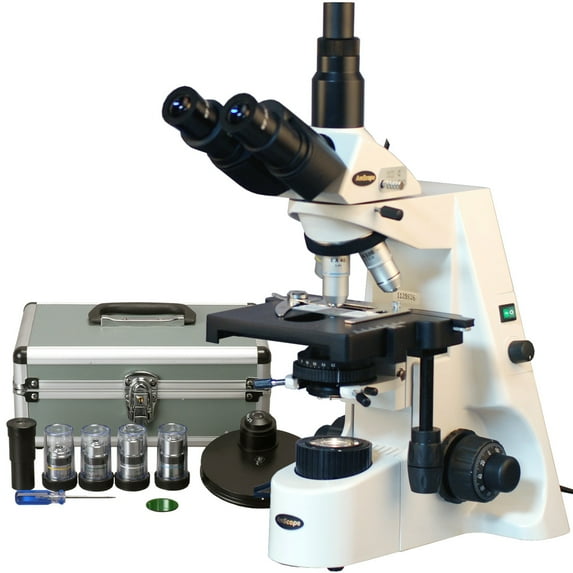

AmScope 40X-2500X Professional Infinity Plan Phase Contrast Kohler Trinocular Microscope New

(No ratings yet)

Key item features

40x-2500x infinity Plan optics offers crystal clear sharp images
Seven extreme widefield phase contrast magnifications & six brightfield settings
Backward nosepiece provides spacious operation space

Specs

Standard optical microscope type
Compound
Microscope head type
Trinocular
Maximum magnification
2500x
Minimum magnification
40x
Features
Halogen Lights
Brand
AmScope

Price when purchased online

Report an issue with this seller

More seller options (1)

Starting from $2,048.99

About this item

Product details

This is a professional phase contrast trinocular compound microscope with superior extreme widefield infinity Plan Achromatic optical system, offering crisp clear images. It comes with a 30 degree inclined 360 degree swiveling trinocular Siedentopf head, extreme widefield eyepieces, infinity Plan objectives, coaxial coarse & fine focusing, 3-D mechanical stage, and Kohler halogen illumination with wide band power supply (from 85V to 230V). The backward nosepiece configuration allows spacious room for convenient operation and comfortable observation. The trinocular port uses the third port for camera capabilities giving you the remaining two ports to view your specimen. This microscope provides seven phase contrast magnification powers (100X, 200X, 250X, 400X, 500X, 1000X and 2500X) and six levels of brightfield magnification (40X, 100X, 250X, 400X, 1000X and 2500X). It is a superb instrument for clinic offices, veterinary labs and research laboratories, and comes in a factory sealed box.

Features:

An Affordable Infinity Plan Optical Microscopy System with Koehler Illumination!

Backward Nosepiece Allowing Spacious Room for Comfortable Observation

Large Mechanical Stage with Two-microslide Specimen Clamp

Humanized Configuration Design Providing Comfortable Operation

Front Open Light house Framework for Easy Access to Light Bulb

Fully Coated Optical System with High Resolution

Crystal Clear Sharp Images

Precise Mechanical Control System

Backward Nosepiece Design for Spacious Operation Room

Koehler Illumination System with Field Diaphragm for Lighting Control

30 Degree Inclined, 360 Degree Swiveling, Trinocular Siedentopf Head

Seven Phase Contrast Magnification Powers: 100X, 200X, 250X, 400X, 500X, 1000X

Six Brightfield Magnification Levels: 40X, 100X, 250X, 400X, 1000X and 2500X

Intensity-Variable Transmitted Halogen Lighting System

Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder

Rack and Pinion Adjustment for Condenser

Low Position Coaxial Stage Movement Control Knobs

Dual Side Coaxial Coarse and Fine Focusing Control

Adjustable Interpupillary Distance

Adjustable Diopter on Ocular

Durable Cast Alloy Frame Stand with Stain Resistant Enamel Finish

Four Infinity Plan Objectives: 4X, 10X, 40X, 100X

Four Infinity Plan Phase Contrast Objectives: 10X, 20X, 40X, 100X

Two Sets of Wide Field Eyepieces: Wide Field 10X (22mm Field of View) and 25X

Large Double Layer Mechanical Stage with Stain Resistant Finish

Upward Stage Stopper to Protect Objectives and Slides

Compatible with a Wide Range of Optional Accessories, Including Phase Contrast and Darkfield Condensers

Manufactured under ISO 9001 Quality Control Standards

Excellent Five (5) Year Factory Warranty

Unbeatable Low Price Guaranteed or Difference Back!

Satisfaction Guaranteed or Your Money Back!

Specifications:

Optical System: infinity corrected

Nosepiece: backward, ball bearing quadruple

Head: Siedentopf trinocular head, 30-degree inclined

Eyepiece: WH10X/22mm and WH25X

Phase Contrast Objective: infinity plan objective 10X, 20X, 40X (spring), 100X (spring, oil)

Objective: infinity Plan Achromatic 4X, 10X, 40X (spring), 100X (spring, oil)

Focusing: low position coaxial focus system

Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)

Mechanical Stage: 7.1"x5.9" (180mm ? 150mm)

Stage Traveling Range: 3"x 2" (75x50mm)

Division of Fine Focusing: 0.0000787" (0.002mm)

Condenser: N.A. 1.25, swing with iris diaphragm filter

Illumination: Koehler, halogen 12V/20W

Power Supply: 85V-230V wide voltage, CE certified

40x-2500x infinity Plan optics offers crystal clear sharp images
Seven extreme widefield phase contrast magnifications & six brightfield settings
Backward nosepiece provides spacious operation space
