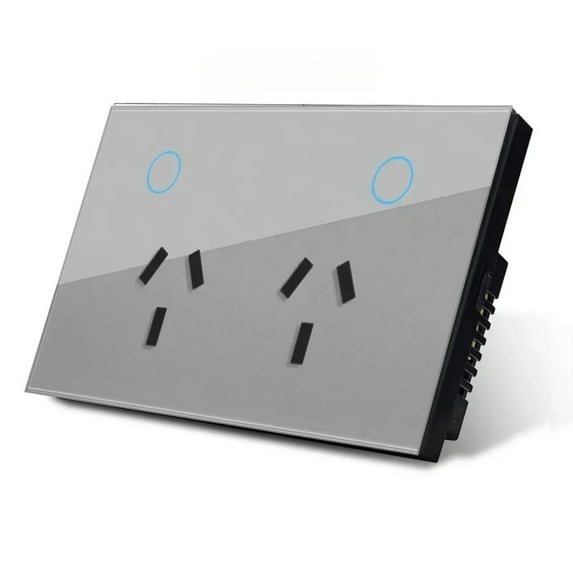

Melery Smart AU Wall Outlet - Matter Protocol, Tempered Glass Panel, Voice Remote, Compatible with SmartThings, Homekit & Smart Home Ecosystems

Color:White/Black/Gold/Gray
Size:(L) 120*(W)72*(H)42mm
Weight:191g
Material:PC /Glass Panel
Voltage range:90-250V AC
Max current:15A each
Wireless frequency:2.412~2.484GHz
Wireless IEEE standards:IEEE802.11b/g/n
Security type:WEP61/WEP/128/TKIP/CCMP(AES)
Security mechanism:WEP/WPA-PSK/WPA2-PSK
Wireless consuming:<=0.3W
Working condition:Temp: -30~60 degree

Specification
Material: PC V0 flame-retardant material + tempered glass panel
Rated Voltage: AC 100V-240V
Wi-Fi: 2.4GHz, IEEE 802.11 b/g/n (only supports 2.4GHz WiFi, 5GHz not compatible)
Supported OS: iOS
Wireless Power Consumption: <0.3W
Security Mechanism: WPA-PSK/WPA2-PSK
Protocol Compliance: Developed in accordance with the Matter standard protocol, and has passed CSA Matter certification. Compatible with mainstream smart home platforms (via their official apps/devices) and supports device binding & control.

Voice Control
Supports voice control via mainstream smart voice assistants (compatible with most certified voice control devices). Achieve hands-free control of home lighting and appliances—just use simple voice commands to make the device respond.

App Control
The device can be controlled via multiple compatible smart home apps, including the uHome+ app and other apps integrated with the Matter SDK. After successful network configuration, you can use these apps to control functions like switch on/off, brightness adjustment, and color adjustment (if applicable).

Device Factory Reset
For sockets/switches: Long-press the function button for 5-10 seconds to reset. The indicator light will blink three times during the reset process, indicating success.
For lighting products: Turn the power on and off five times in sequence. The light will blink three times to confirm reset completion.

Device Network Configuration
Each device is equipped with a Matter QR code and an 11-digit short code. To bind the device, open your paired smart home app, then either scan the QR code directly or enter the 11-digit short code to complete pairing.

Easy Setup & Unified Control
With Matter protocol support, you don’t need to download and register multiple brand-specific apps when adding new devices. Simply use certified mainstream smart home platforms to control all your Matter-compatible devices in one place.

High-Quality & Luxury Design
Features a high-quality build with a PC V0 flame-retardant body and tempered glass panel. It has a large physical button for easy manual control, suitable for bedrooms, living rooms, and other spaces. Its minimalist design complements various interior styles, serving as both a functional device and a decorative piece.

Timer Function
The smart switch supports custom timers—set a schedule to make it automatically turn on/off as needed. This is ideal for daily routines (e.g., timed lighting, scheduled appliance activation) and brings a convenient, intelligent lifestyle.

1. Network Configuration via uHome+ App
1)Download the uHome+ app from your device’s application market (iOS App Store / Android Google Play).
2)Restore the device to factory settings to put it into network configuration mode.
3)Open the uHome+ app, tap the "+" icon in the upper right corner of the homepage to enter the network configuration interface.
    Option 1: Tap the icon in the upper right corner (as indicated in the app) and scan the device’s Matter QR code to add it.
    Option 2: On the QR code scanning page, tap the "Enter Pairing Code" button, then input the device’s 11-digit short code to start pairing.

2. Network Configuration via iOS Smart Home Apps
Environment Check
iPhone system version ≥ iOS 16.2.
A Matter-compatible control hub is required (e.g., certified smart speakers or streaming devices).
Connect to a 2.4GHz WiFi network (WiFi password cannot be blank, and the network cannot be hidden).
Network Configuration Steps
1)Put the device into network configuration mode (follow the factory reset steps above).
2)Open your iOS smart home app, tap the "+" icon on the homepage, then select "Add or Scan Accessories".
3)Pair the device in one of two ways:
    Scan the device’s Matter QR code directly.
    Tap "More Options" → "My Accessories", then select "Enter Code" and input the 11-digit short code.
4)Follow the app prompts to complete device addition.

3. Network Configuration via Android Smart Home Apps
Environment Check
Install a certified Android-compatible smart home app (supports Matter protocol).
A Matter-compatible control hub is required (e.g., certified smart speakers or dedicated smart home hubs).
Network Configuration Steps
    1)Open the Android smart home app’s homepage, tap the "+" icon, then select "Set up device" → "New device".
    2)Put the device into network configuration mode, then follow the app prompts to scan the device’s QR code or enter the 11-digit pairing code.
    3) After successful addition, set the device’s room location and modify its name for easy identification.

4. Network Configuration via Certified Samsung-Compatible Smart Home App
Environment Check
Install the certified Samsung-compatible smart home app (version 1.8 or higher).
A compatible control hub is required (e.g., dedicated smart home stations or hubs supported by the app).
Network Configuration Steps
    1)Put the device into network configuration mode.
    2)Log in to the app (ensure it’s bound to your control hub).
    3)Tap the "+" icon in the upper right corner of the homepage, then select "Scan QR code" or "Enter setup code" to complete device pairing.
