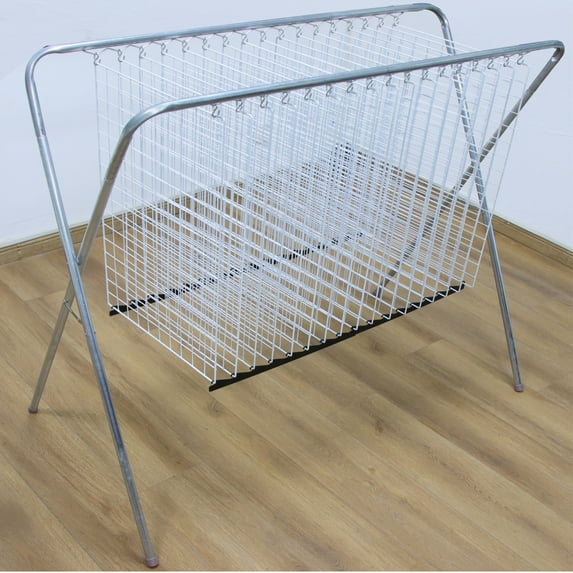

LD5080-17 Simple Floor-Standing Vertical Lightweight Drying Rack

Description:
This is a simple, free-standing, vertical drying rack designed for the natural air-drying of lightweight products across various industries. The recommended load capacity is up to 2 kg per panel.

Parameters:
Material: Steel pipe: Galvanized
Size: 63.78*31.5*53.15″ (162*80*135cm)
Number of meshes: 17
Mesh size: 19.69*31.5″ (50*80cm)

Installation Method:
First, please secure the steel pipe frame, install the center support rod, tighten the fixing screws, and attach the bottom rubber sleeve.
Next, install the top hooks and hang the mesh panels in sequence.
Finally, attach the positioning connectors at the bottom.

Important Notes:
When using, please ensure that all items to be dried are placed on the rack. Then hang the positioning connector at the bottom of the mesh panel to fix the spacing between mesh panels and prevent items from colliding or scraping. Please note that the weight of drying items should not exceed two kilograms.

Item included(010721):
Techtongda LD5080-17 Simple Floor-Standing Vertical Lightweight Drying Rack
