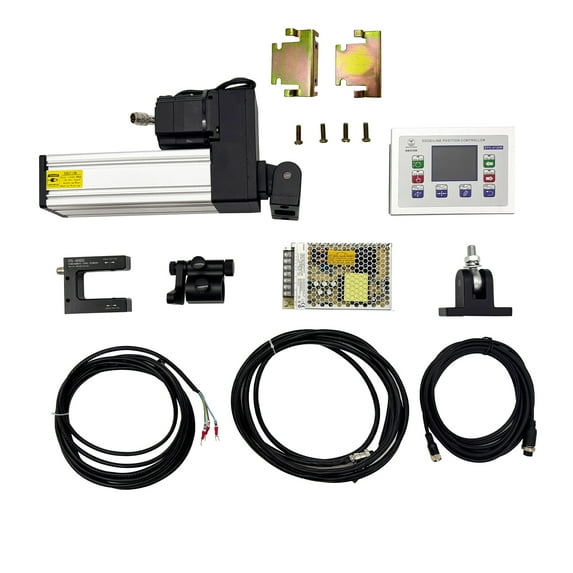

Hero image 0 of EPC-A12 Servo Edge Position Control System Ultrasonic Sensor High Stroke 150MM 100-240V, 0 of 12

EPC-A12 Servo Edge Position Control System Ultrasonic Sensor High Stroke 150MM 100-240V

(No ratings yet)

Key item features

Motor high performance servo vector drive, fast speed response, support direct torque control, acceleration and deceleration, speed limit. The propeller adopts servo motor to drive ball screw, with high accuracy, low noise and no maintenance.
High speed CPU operation, supporting EPC and edge LPC line, CPC alignment, SPC misalignment (snake) and other correction methods. It supports ultrasonic sensors, photoelectric sensors and CCD sensors.
Large screen color touch screen, human-machine interface is beautiful and practical, easy to operate. Flexible installation. Integrated setup wizard and help system, each operation page has help button to view concise help information. The driver has encoder and absolute value linear position feedback device, adaptable to different mechanical stroke, no need of travel limit switch, and the position of position will never drift.
With 3 high-speed analog inputs, it can connect two analog sensors and one external control analog (such as fine-tuning position, snake speed, etc.) The switch input with 3 photoelectric isolation can set different functions individually.
Multiple software and hardware protection measures are stable and reliable, and have strong anti-interference ability. There are different emergency solutions for failure of components. Ensure uninterrupted operation for 24 hours.

Specs

Manufacturer part number
53301
Brand
LGXEnzhuo
Features
High Precision
Model
053301
Accessories
Ultrasonic Sensor
Weight
19.9 lb

Current price is $779.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between May 29 - Jun 1

Sold and shipped by Enzhuo

3.8260869565217392 stars out of 5, based on 23 seller reviews(3.8)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Introduction:
EPC-A12 High-Precision Analog High-Speed Servo Automatic Edge Position Control System is a high-performance industrial automation solution designed for applications requiring precise web guiding. Integrating advanced servo control technology and ultrasonic sensing, this system real-time monitors and automatically corrects the lateral deviation of materials (such as non-woven fabrics, woven bags, paper, cloth, and other opaque materials) during transportation, ensuring continuous and accurate production processes. With a powerful 1-ton thrust and a 150mm long stroke, it is capable of driving heavy loads, making it suitable for various demanding industrial environments. The included PS-400S ultrasonic sensor provides reliable edge or line detection for non-transparent materials. This system is an ideal choice for enhancing production efficiency and product quality in industries like textiles, printing, packaging, and papermaking.
Note:
The above are simplified steps. Please refer to the full instruction manual provided with the product for detailed operations.

Parameters:
Input Voltage: AC100V-240V/50-60HZ
Output Voltage: DC24V 6.5A
Encoders Power Supply Voltage: DC15V 200MA MAX
Stroke: 5.9"(150MM)
Thrust: 1 Ton
Guiding Sensor Model: PS-400S
Suitable Materials: Non-woven Fabric, Cloth, Woven Bags, Paper, Opaque Materials(Not Suitable for Transparent Materials).
Analog Input: 3 Channel 0-5V, Impedance 20K
Sensor Power Supply Voltage: DC12V 350MA MAX
Rectifying Response Time: 0.5MS
Analog Input Resolution: 12Bit ADC
Switch Input: 3 Road NPN
Correction Method: 3 Way Npn Unilateral/Line Rectification, Alignment Correction, Snake Correction
Support Sensor Type: Ultrasonic Sensor, Photoelectric Sensor, CCD Sensor
Drive Speed: 1MM/S-75MM/S
Drive Thrust: 100KGF-1500KGF, Selectable
Human-Computer Interaction: Tft Touch Screen
Screen Display: 4.3 Inch 260 Thousand Color
Package Size: 26.4"*11.0"*6.7"(67CM*28CM*17CM)
Net Weight/Gross Weight: 18.1LBS(8.2KG)/19.8LBS(9KG)

Items Included: 053301-EnzS
EPC-A12 Servo Edge Position Control System, Ultrasonic Sensor, 1-Ton Thrust, 150MM Stroke, for Nonwoven, Paper, Fabric AC100-240V
EPC-A12 Servo Edge Position Control System*1

Motor high performance servo vector drive, fast speed response, support direct torque control, acceleration and deceleration, speed limit. The propeller adopts servo motor to drive ball screw, with high accuracy, low noise and no maintenance.
High speed CPU operation, supporting EPC and edge LPC line, CPC alignment, SPC misalignment (snake) and other correction methods. It supports ultrasonic sensors, photoelectric sensors and CCD sensors.
Large screen color touch screen, human-machine interface is beautiful and practical, easy to operate. Flexible installation. Integrated setup wizard and help system, each operation page has help button to view concise help information. The driver has encoder and absolute value linear position feedback device, adaptable to different mechanical stroke, no need of travel limit switch, and the position of position will never drift.
With 3 high-speed analog inputs, it can connect two analog sensors and one external control analog (such as fine-tuning position, snake speed, etc.) The switch input with 3 photoelectric isolation can set different functions individually.
Multiple software and hardware protection measures are stable and reliable, and have strong anti-interference ability. There are different emergency solutions for failure of components. Ensure uninterrupted operation for 24 hours.
