Hero image 0 of Electric Worm Gear Slewing Drive Worm Gear Slewing Drive Slewing Reducer DC24V, 0 of 14

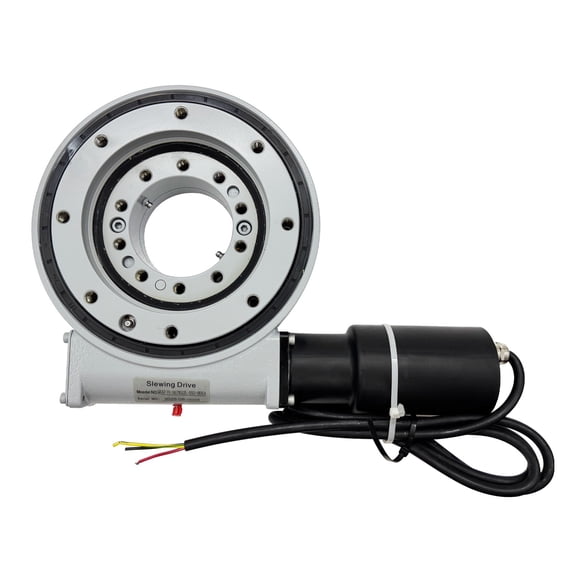

Electric Worm Gear Slewing Drive Worm Gear Slewing Drive Slewing Reducer DC24V
(No ratings yet)
Key item features
- This electric worm gear slewing drive slewing reducer (SE7 DC24V) operates on DC 24V power and integrates a worm gear mechanism.
- It features self-locking capability, compact structure, and smooth operation.
- Its function is to convert the motor's rotary motion into low-speed, high-torque output drive, enabling precise angular slewing.
- The all-copper coil DC motor utilizes high-conductivity copper windings, offering low resistance, reduced heat generation, and high energy efficiency.
- The device is suitable for solar tracking systems, automated rotary platforms, medical equipment, and industrial valve control—applications requiring low-speed heavy-duty operation and precise positioning.
Specs
- BrandTechtongda
- Assembled product height3.1 in
- Weight54.34 lb
- Model057142-EezS
Current price is USD$975.00
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Rotary Reducer Performance:
Rated Speed: 1.028rpm
Rated Torque: 320KN.m
Reduction Ratio: 71:1
Transmission Accuracy: 0.2°
Transmission Efficiency: ≈40%
Ambient Temperature: -20~+80℃
Holding Torque: 10.4 KN.m
Static Axial Load: Coa 133 kN
Static Radial Load: Cor 53 kN
Dynamic Axial Load: Ca 32 kN
Dynamic Radial Load: Cr 28 kN
Tilting Moment Torque: Com 13.5 KN.m
Package size: 22.0"*15.3"*6.7" (56cm*39cm*17cm)
Net weight / Gross weight: 54.4lbs(24.7kg) / 56.4lbs(25.6kg)
Planetary Gear Motor Performance Parameters (24/730/12L):
Rated Voltage: 24 VDC
Rated Speed: 73rpm
Rated Torque: 12N.m
Rated Current: 7.3 A
Protection Rating: IP65
Ambient Temperature: -40~+80℃
Precautions
1. During transportation, please ensure the rotary reducer packaging box is positioned in the specified orientation and avoid collisions. When handling, wear work gloves and operate with caution. Rotary reducers typically feature threaded holes on both inner and outer rings, enabling safe lifting and transportation using hoisting equipment.
2. During storage, maintain the specified orientation of the rotary reducer packaging box. Store in a closed room to prevent moisture exposure. Within sealed packaging, surface corrosion and rust protection can be maintained for approximately 5 months. For longer storage periods, implement special protective measures.
3. Approximately 100 hours after initial assembly, it is necessary to retighten all bolts to the specified torque. This inspection should be performed annually. Under special operating conditions, the frequency of inspections may be reduced. If any bolts are found loose, immediately replace all bolts, nuts, and washers.
Installation Instructions for Slewing Reducer
1. Clean the mounting bracket to remove welding spatter, zinc residue, and other contaminants.
2. Please secure the bracket to the slewing reducer with bolts. Flat washers and spring washers must be installed under the bolt heads.
3. The slewing reducer shall be installed in a no-load state.
Item Included (057142):
Techtongda Electric Worm Gear Slewing Drive DC24V
AC Motor Speed Controller *1
Rated Speed: 1.028rpm
Rated Torque: 320KN.m
Reduction Ratio: 71:1
Transmission Accuracy: 0.2°
Transmission Efficiency: ≈40%
Ambient Temperature: -20~+80℃
Holding Torque: 10.4 KN.m
Static Axial Load: Coa 133 kN
Static Radial Load: Cor 53 kN
Dynamic Axial Load: Ca 32 kN
Dynamic Radial Load: Cr 28 kN
Tilting Moment Torque: Com 13.5 KN.m
Package size: 22.0"*15.3"*6.7" (56cm*39cm*17cm)
Net weight / Gross weight: 54.4lbs(24.7kg) / 56.4lbs(25.6kg)
Planetary Gear Motor Performance Parameters (24/730/12L):
Rated Voltage: 24 VDC
Rated Speed: 73rpm
Rated Torque: 12N.m
Rated Current: 7.3 A
Protection Rating: IP65
Ambient Temperature: -40~+80℃
Precautions
1. During transportation, please ensure the rotary reducer packaging box is positioned in the specified orientation and avoid collisions. When handling, wear work gloves and operate with caution. Rotary reducers typically feature threaded holes on both inner and outer rings, enabling safe lifting and transportation using hoisting equipment.
2. During storage, maintain the specified orientation of the rotary reducer packaging box. Store in a closed room to prevent moisture exposure. Within sealed packaging, surface corrosion and rust protection can be maintained for approximately 5 months. For longer storage periods, implement special protective measures.
3. Approximately 100 hours after initial assembly, it is necessary to retighten all bolts to the specified torque. This inspection should be performed annually. Under special operating conditions, the frequency of inspections may be reduced. If any bolts are found loose, immediately replace all bolts, nuts, and washers.
Installation Instructions for Slewing Reducer
1. Clean the mounting bracket to remove welding spatter, zinc residue, and other contaminants.
2. Please secure the bracket to the slewing reducer with bolts. Flat washers and spring washers must be installed under the bolt heads.
3. The slewing reducer shall be installed in a no-load state.
Item Included (057142):
Techtongda Electric Worm Gear Slewing Drive DC24V
AC Motor Speed Controller *1
- This electric worm gear slewing drive slewing reducer (SE7 DC24V) operates on DC 24V power and integrates a worm gear mechanism.
- It features self-locking capability, compact structure, and smooth operation.
- Its function is to convert the motor's rotary motion into low-speed, high-torque output drive, enabling precise angular slewing.
- The all-copper coil DC motor utilizes high-conductivity copper windings, offering low resistance, reduced heat generation, and high energy efficiency.
- The device is suitable for solar tracking systems, automated rotary platforms, medical equipment, and industrial valve control—applications requiring low-speed heavy-duty operation and precise positioning.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
Techtongda
Assembled product height
3.1 in
Weight
54.34 lb
Model
057142-EezS
Warranty
Warranty information
It is refundable within one month after delivery and accessories are provided free of charge. 6 months' warranty for the machine, not for the consumables.We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. We do not bear the return freight for returns other than product quality.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
