Pressure Gauge Refrigeration High Precision Digital Vacuum Manifold Meter Tester Measuring Tools ,Easy to Use

6) Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.

7) Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.

8) Please wear qualified protective equipment to protect user during testing.

9) Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.

Specifications:Dimensions: 170*110*50mm/6.69*4.33*1.97"

Weight: 950g

Pressure test: gauge pressure

Pressure test unit: Kpa; Mpa; bar; inHg; PSI.

Pressure test range: 0 Kpa~6000 Kpa

Pressure test resolution: 1 Kpa

Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt

Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)

Vacuum test: relative vacuum

Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.

Vacuum test range: -101 Kpa ~0 Kpa

Vacuum test resolution: 1 Kpa

Temperature test unit: °C (Celsius), °F (Fahrenheit)

Temperature test range: -40°C~150°C (-40°F~302°F)

Temperature test resolution:

0.1°C (-40°C~99.9°C), 1°C (100°C~150°C)

0.1°F (-40°F~99.9°F), 1°F (100°F~302°F)

Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt

Power Supply: 4* AA Battery (not include)

Notes:1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2. Please allow slight measuring deviation due to manual measurement.

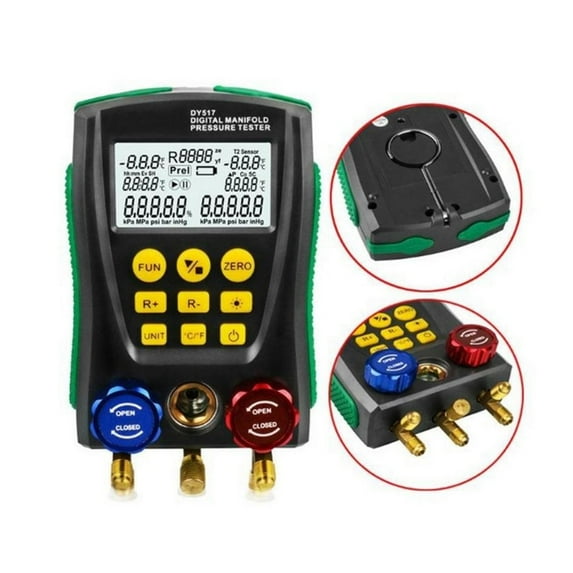

Description:The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners and cold storage. The instrument has double pressure test, dual temperature test (need test clip,not include), digital readout, multi-unit switching, multi-mode function and built-in refrigerant database. The instrument uses high-strength engineering plastics and flexible non-slip silicone design, the whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability. Large-size liquid crystal display, LCD backlight support, data display clear and easy to read, convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.

The instrument can measure double pressure (gauge pressure) at the same time, as well as dual temperature measurement (need test clip,not include), with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs. Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data. Also it tests percentage of vacuum measurement; pressure leak measurement, leak time speed record. It is deserved to have this multi-functional, accurate and simply operated digital manifold let you do the job right.
