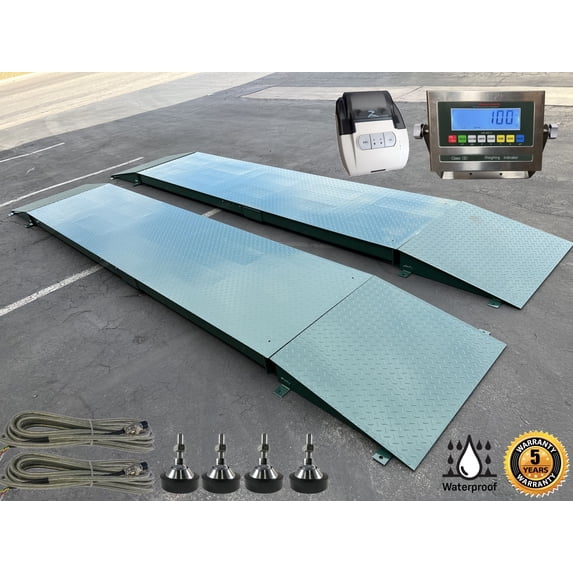

US-AX1030-80K Axle Scale 80,000 lb (US-6011SS Indicator & Thermal Printer)

USA Measurements "GREEN DRAGON" US-AX1030-80K series truck scale. System includes dual weigh bridge (2 pas), digital LCD display, (4) ramps, and steel braided cables. This system can be used to weigh cars, trucks, pick-ups, roll offs, dumpster trucks, tractor trailers, and many other types of vehicles. The user will drive each axle on the scale and the US-6011SS stainless steel indicator can offer an accumulated weights. Great for portable applications, outdoor use, placed in permanent yards, and many other uses. The US-AX1030-80K series is perfect to avoid DOT fines.

Features:

• Avoid overweight fines, DOT fines, and ensure underloading
• Available in 10' long, 30" wide, and 5.75" height platform
• Capacity: 80,000 lb x 10 lb
• Large weighing surface and low profile for vehicle weighing
• Heavy duty I-Beam construction with threaded top plate
• Four premium water tight alloy steel nickel plated load cells
• Low profile 5.75” height for smooth drive on/off
• Load cell capacity is 2.2 times the scale capacity for overload protection
• 50’ quick connecting cables (2) for hostile environments
• Can be used with ramps for above ground installations
• Can be used for flush installation for permanent application
• Durable platform with treading for tire grip
• Powder coated green paint finish
• Accuracy: 2-5% of given weight
• Forklift portable
• Factory Calibrated
• Overload Protection
• 5 Year Warranty on Steel Deck
• 2 Year Warranty on Electronics
• Non-NTEP (Not legal for trade)

US-6011SS Indicator Features:

• US-6011SS indicator with LCD display
• 1″ Tall backlit display
• Includes Rechargeable battery (up to 100 hrs)
• Metal casing
• AC adapter included
• Multiple weighing units: (lb/kg/g/oz/lb:oz)
• Gross/Tare/Pre-Set Tare/Zero
• Multiple Hold functions
• Count weighing
• Accumulation weighing
• Overload / Underload alarm
• Splash proof  keyboard and display
• Connects to a remote display and printer
• Displays up to 50,000 graduations
• Dual RS-232 Serial Port (Printer, Software, Scoreboard ect)
• 2 Year Manufacturer Warranty

US-PTP-I Printer Features:

• USM thermal printer
• Easy to load thermal printer
• Fast processing
• Paper type: Thermal paper roll, 58mm
• Paper width: 58±0.5mm,ø≤50mm
• Effective print width: 48mm
• TPH lifetime: 50km
• Printing font: (ANK) 5×7 ; 6×8 ASCII
• Paper end sensor: yes
• Printing method: Thermal line printing
• Printing speed: 65mm/s
• Resolution: 203dpi, 384 dots per line
• Interface: Serial / 485 /Parallel / USB/ Bluetooth
• Power supply: DC8.5±5%, 4A
• Paper loading way: Clam shell, easy paper loading
• Cutting paper method: Manual
• Dimensions: 4.4”(W) x 5.8”(L) x 3.1”(H)
• Working Temp: 41 ~ 113°F, humidity: 10 ~ 80%
• Serial cable
• 8.5V adapter
• Weight: 0.87 lbs

What is include:

• (2) 10' x 30" Twin Weigh Bridge
• (4) 25" x 30" Ramps with Mounting
• (8) 20,000 lb NTEP Load Cells
• (8) Adjustable Leveling Feet
• (2) 50' Stainless steel Braided Cables
• (1) US-6011SS Steel Steel Indicator
• (1) US-PTP-I Thermal Printer
• (2) 110V Power Adapter
• (1) User Manual

Common Applications:

• Military Use
• Recycling (Non-NTEP applications)
• Trucking Companies
• Remote Job Sites
• Logging & Lumber Business
• Temporary Job Site / Clean Ups
• Weighing Forklifts / Bobcat / Skid Steer

Resources:

• Green Dragon Brochure
• US-6011 Brochure
• US-6011 Indicator Manual
• US-PTP-I Thermal Printer
• Installation instruction for axle scale
• Axle Scale blueprint
