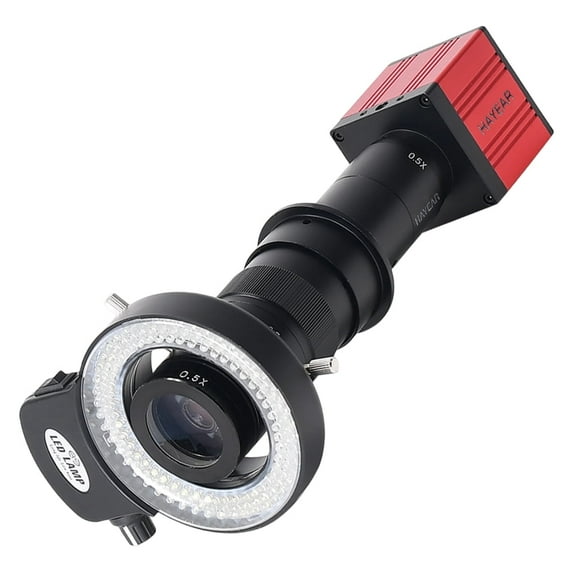

Hayear 51MP 60FPS Red Microscope Camera Set, 180X Lens,WIith 0.5X Barlow les, 144 LED Industrial Digital Microscope for Phone Repair PCB Soldering

Hero image 0 of Hayear 51MP 60FPS Red Microscope Camera Set, 180X Lens,WIith 0.5X Barlow les, 144 LED Industrial Digital Microscope for Phone Repair PCB Soldering, 0 of 6

Hayear

Hayear 51MP 60FPS Red Microscope Camera Set, 180X Lens,WIith 0.5X Barlow les, 144 LED Industrial Digital Microscope for Phone Repair PCB Soldering

(No ratings yet)

Key item features

‌Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 51 MegaPixel
Video format: MP4(for TF card)
Video recorder: 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/ManualExposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions
Image sensor: 51 megapixel CMOS sensor 1/2.33 inch
Effective pixel: 51 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
180X C-Mount Objective Lens:Working distance: 100-150mm (without any barlow)Working distance: 200-205mm (with 0.5X barlow)zoom c-mount Lens 0.5X C-mount adapterzoom ratios: 6.5:1 Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 168mm(L) * 50mm(DIA)Weight: 450g
144 LED Ring Light:144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Package including:
1 x 51MP Microscope Camera
1 x Power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1 x 180X C-Mount Objective Lens (Optional)
1 x 144 LED Ring Light (Optional)
1 x 0.5X Objective Barlow (Optional)

Specs

Maximum magnification
180X
Brand
Hayear
Maximum image resolution
1920*1080
Megapixels
51 MP
Compatible OS
Windows/Mac/Linux
Minimum magnification
5x

Current price is $231.18

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between Jun 8 - Jun 16

Sold and shipped by HAYEAR

Report an issue with this seller

Free 30-day returns

About this item

Product details

T‌he HAYEAR 51MP Industrial Microscope Camera 180X C-Mount Lens & 144 LED Ring Light‌ This high-performance 51MP CMOS camera delivers FULL HD 1080P@60FPS video via HDMI/USB 2.0, with manual/auto exposure control and adjustable white balance. The 180X magnification C-mount objective lens (with 0.5X adapter) offers 100-150mm working distance, while the 144LED ring light provides shadow-free illumination at 0-100% brightness. Features include digital zoom, multi-color OSD (6 languages), and adjustable crosshairs/horizontal/vertical lines. Metal housing with 450g weight, compatible with 30-63mm lenses. Ideal for PCB repair, electronics inspection, and industrial applications

‌Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 51 MegaPixel
Video format: MP4(for TF card)
Video recorder: 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/ManualExposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions
Image sensor: 51 megapixel CMOS sensor 1/2.33 inch
Effective pixel: 51 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
180X C-Mount Objective Lens:Working distance: 100-150mm (without any barlow)Working distance: 200-205mm (with 0.5X barlow)zoom c-mount Lens 0.5X C-mount adapterzoom ratios: 6.5:1 Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 168mm(L) * 50mm(DIA)Weight: 450g
144 LED Ring Light:144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Package including:
1 x 51MP Microscope Camera
1 x Power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1 x 180X C-Mount Objective Lens (Optional)
1 x 144 LED Ring Light (Optional)
1 x 0.5X Objective Barlow (Optional)
