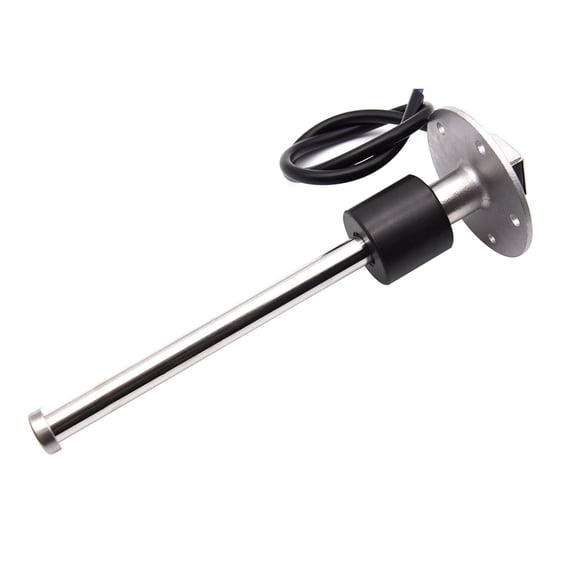

100-600MM Stainless Steel Fuel Level Sensor 0-190ohm 52MM Fuel Level Gauge With Red Backlight For Marine Boat Car Oil Tank ,Compact & Sturdy

The correct connection method is:

- The yellow wire of the meter does not need to be connected (if your sensor signal is 0~190ohm)

- The black wire of the meter is connected to the negative pole of the power supply,

- The red wire of the instrument is connected to the positive pole of the power supply,

- Connect the blue wire of the meter to the brown wire of the sensor,

- The blue wire of the sensor is connected to the negative pole of the power supply

Sensor Specification:

- Resolution range: 21 mm

- Assembly: SAE standard 5 holes

- Rated current for alarm switch: 500mA

- Operating temperatures: - 40 to 85

- Fit for Fuel Level Gauge and Water Level Gauge

- Sensor Length :150mm/200mm/250mm/300 mm ,350 mm ,

- Mounting: 5 pieces of M5 screws and 2 mm thick gasket

Note:

- Empty oil level : 0 ohm / 240 ohm

- Full oil level : 190 ohm / 33 ohm

Fuel Gauge Specification:

- Size: Approx. 8x8x7cm/3.15x3.15x2.76inch

- Working current 60mm

- Working temperature: -30~+75°C

- Gauge diameter: 52mm / 2inch

-Warning Light : When Fuel level less than 13%, the warning light will flash .

Package Include:

1 X Fuel Level Sensor

or

1 X 52mm Fuel Level Gauge
