Hero image 0 of Beyma SMC60 Titanium Dome Driver W/polyester Surround W/2-in Throat, 0 of 1

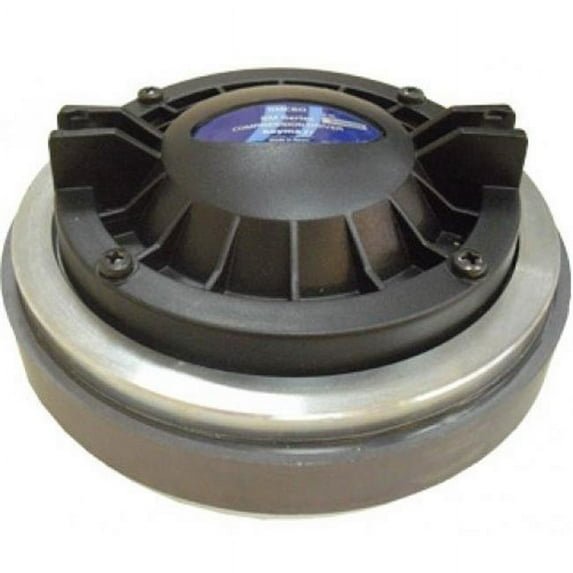

Beyma SMC60 Titanium Dome Driver W/polyester Surround W/2-in Throat
(No ratings yet)
Key item features
* Throat diameter: 49 mm 2 in
* Nominal impedance: 8 ohm
* Minimum impedance: 6.9 ohm @ 3.3 kHz
* Re: 5.5 ohm
* Power capacity: 80 W AES above 1 kHz
* Program power: 160 W above 1 kHz
* Sensitivity: 109 dB 1 W @ 1 m coupled to horn
* Frequency range: 500-18000 Hz
* Recommended crossover frequency: 800 Hz or higher (12 dB/oct. min slope)
* Voice coil diameter: 72.2 mm 2.9 in
* Flux density: 1.55 T
* BL factor: 8.8 N/A
* Diaphragm material: Titanium dome with polyester surround
* External diameter: 156 mm 6.14 in
* Depth: 75 mm 2.95 in
* Mounting: Four M6 threaded holes. 90 degrees apart on 101.6 mm (4 in) diameter circle.
* Mounting hardware is supplied
* Net weight: 4.5 kg 9.9 lb
* Total weight: 5 kg 11 lb
* Magnet: Ferrite
* Nominal impedance: 8 ohm
* Minimum impedance: 6.9 ohm @ 3.3 kHz
* Re: 5.5 ohm
* Power capacity: 80 W AES above 1 kHz
* Program power: 160 W above 1 kHz
* Sensitivity: 109 dB 1 W @ 1 m coupled to horn
* Frequency range: 500-18000 Hz
* Recommended crossover frequency: 800 Hz or higher (12 dB/oct. min slope)
* Voice coil diameter: 72.2 mm 2.9 in
* Flux density: 1.55 T
* BL factor: 8.8 N/A
* Diaphragm material: Titanium dome with polyester surround
* External diameter: 156 mm 6.14 in
* Depth: 75 mm 2.95 in
* Mounting: Four M6 threaded holes. 90 degrees apart on 101.6 mm (4 in) diameter circle.
* Mounting hardware is supplied
* Net weight: 4.5 kg 9.9 lb
* Total weight: 5 kg 11 lb
* Magnet: Ferrite
Specs
- BrandBeyma
- Featuresvehicle-speakers
- ColorMulticolor
Current price is USD$182.59
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
* Throat diameter: 49 mm 2 in
* Nominal impedance: 8 ohm
* Minimum impedance: 6.9 ohm @ 3.3 kHz
* Re: 5.5 ohm
* Power capacity: 80 W AES above 1 kHz
* Program power: 160 W above 1 kHz
* Sensitivity: 109 dB 1 W @ 1 m coupled to horn
* Frequency range: 500-18000 Hz
* Recommended crossover frequency: 800 Hz or higher (12 dB/oct. min slope)
* Voice coil diameter: 72.2 mm 2.9 in
* Flux density: 1.55 T
* BL factor: 8.8 N/A
* Diaphragm material: Titanium dome with polyester surround
* External diameter: 156 mm 6.14 in
* Depth: 75 mm 2.95 in
* Mounting: Four M6 threaded holes. 90 degrees apart on 101.6 mm (4 in) diameter circle.
* Mounting hardware is supplied
* Net weight: 4.5 kg 9.9 lb
* Total weight: 5 kg 11 lb
* Magnet: Ferrite
* Nominal impedance: 8 ohm
* Minimum impedance: 6.9 ohm @ 3.3 kHz
* Re: 5.5 ohm
* Power capacity: 80 W AES above 1 kHz
* Program power: 160 W above 1 kHz
* Sensitivity: 109 dB 1 W @ 1 m coupled to horn
* Frequency range: 500-18000 Hz
* Recommended crossover frequency: 800 Hz or higher (12 dB/oct. min slope)
* Voice coil diameter: 72.2 mm 2.9 in
* Flux density: 1.55 T
* BL factor: 8.8 N/A
* Diaphragm material: Titanium dome with polyester surround
* External diameter: 156 mm 6.14 in
* Depth: 75 mm 2.95 in
* Mounting: Four M6 threaded holes. 90 degrees apart on 101.6 mm (4 in) diameter circle.
* Mounting hardware is supplied
* Net weight: 4.5 kg 9.9 lb
* Total weight: 5 kg 11 lb
* Magnet: Ferrite
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Brand
Beyma
Features
vehicle-speakers
Color
Multicolor
Model
SMC60
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Warnings
Warning Text
proposition 65 reasons:titanium dioxide, other chemicals
