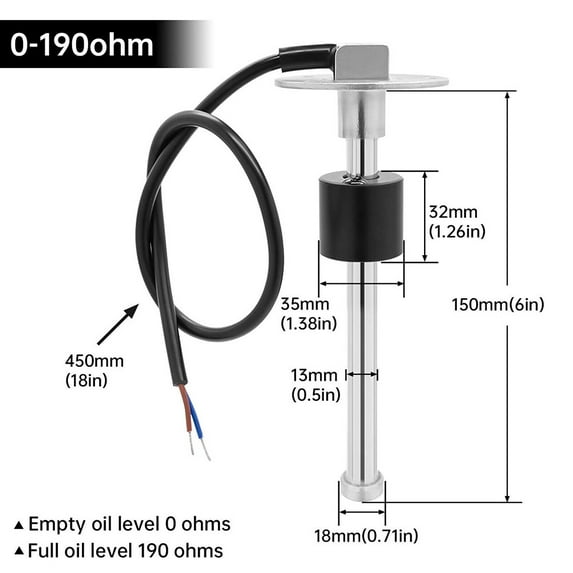

0-190 Ohms Fuel Level Sensor/Water Level Stainless Steel A5 Sensor For Auto Car Boat Water Tank Level Indicato Fuel Level Gauge

Features:
* The fuel sensor unit is made of heavy-duty stainless steel. The advantages of this tank sensor unit are the reed switch, durability and reliability, and the output signal is stable. The tank does not need to be adjusted, accurately indicating the fuel level of the tank.
* The fuel level sensor is suitable for marine, automotive, truck, bus and marine fields.
* The fuel/water level sensor is suitable for US standard output 240-33 ohms (240 ohms when empty and 33 ohms when full).
* Easy to install, SAE 5-hole mounting pattern, easy to install and connect. The well-written and illustrated instructions are simple to understand and easy to follow.
* Avoid the sensor from touching the bottom of the tank, the length of the sensor should be 1 inch (25 mm) less than the depth of the tank.

Specifications:
Part Name: Oil Level Sensor
Material: Stainless Steel
Color: As shown in the picture
Size (optional): 100mm, 125mm, 150mm, 175mm, 200mm, 225mm, 250mm, 275mm, 300 mm, 325mm, 350mm, 375mm, 400mm, 425mm, 450mm, 475mm, 500mm
for Protection Grade: IP67
Resolution Range: 21mm
Assembly: SAE Standard 5 Holes
Operating Temperature: - 40 to 85 degrees Celsius
Alarm Switch Rated Current: 500mA
Operating Temperature: - 40 to 85 degrees Celsius
Level Sensor for Diesel and Engines
Suitable for Fuel Level Gauge and Water Level Gauge
Mounting: 5 M5 screws and 2mm thick washers
Output Signal: 0~190 ohms (European Standard), 240~33 Ohm (US Standard)

Package Contents:
1 x Oil Level Sensor
1 x Washer
5 x Screws

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
